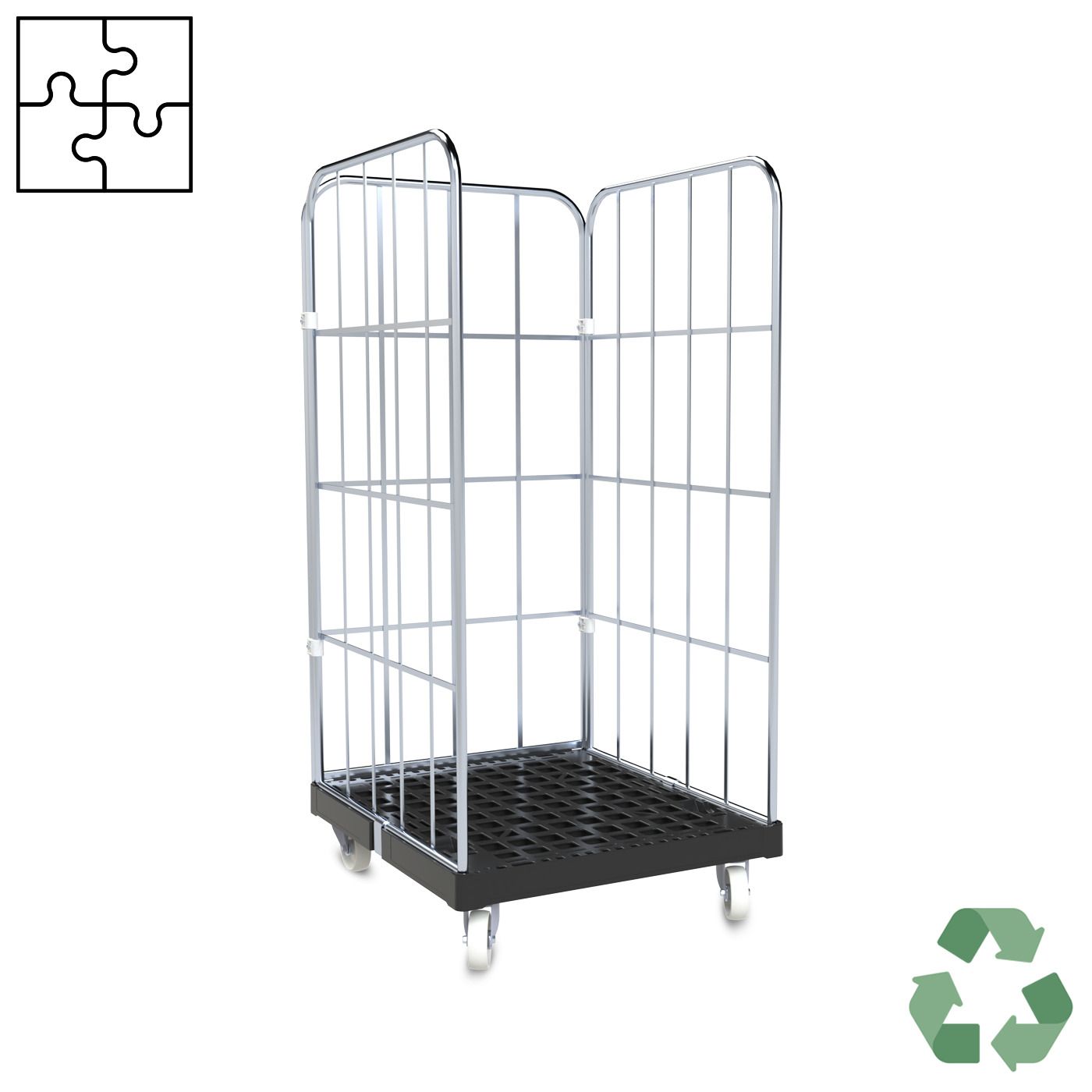

ROLLTAINER BASIC 3-SEITIG

Ecoflex Modular Roll Container System Basic – Base Platform with 3 Side Panels

Increased stability with rear panel support

This version of the Ecoflex Basic modular system combines the robust base platform with three side panels, providing a stable transport solution with additional rear protection.

The integrated rear panel improves load control and prevents goods from shifting or falling backwards during transport.

Ideal for applications where goods need to be securely guided while remaining easily accessible from the front and top.



Product components

This configuration consists of:

Base platform

• Load capacity up to 500 kg
• Dimensions: 724 × 815 × 192 mm
• Platform made from recycled plastic
• Wheels Ø 108 mm made of polypropylene
• 2 swivel castors / 2 fixed castors
• expandable within the Ecoflex system
• robust and durable for daily use

3 side panels (including rear panel)

• surface: Cr 3 blue galvanized
• increase transport safety, especially towards the rear
• provide stable load guidance
• ideal for taller or sensitive goods
• robust and durable construction
• easy integration into the Ecoflex Basic system



Technical specifications

3-sided configuration

• External dimensions: 724 × 827 × 1530 mm
• Internal dimensions: 664 × 803 × 1340 mm
• Load capacity: up to 500 kg



Reliable load control in daily operations

The three side panels create a stable structure that secures goods on the sides and at the rear. This prevents load shifting and ensures better control during transport.

Especially for taller or more sensitive items, the rear panel adds an extra level of safety and supports smooth, structured workflows.

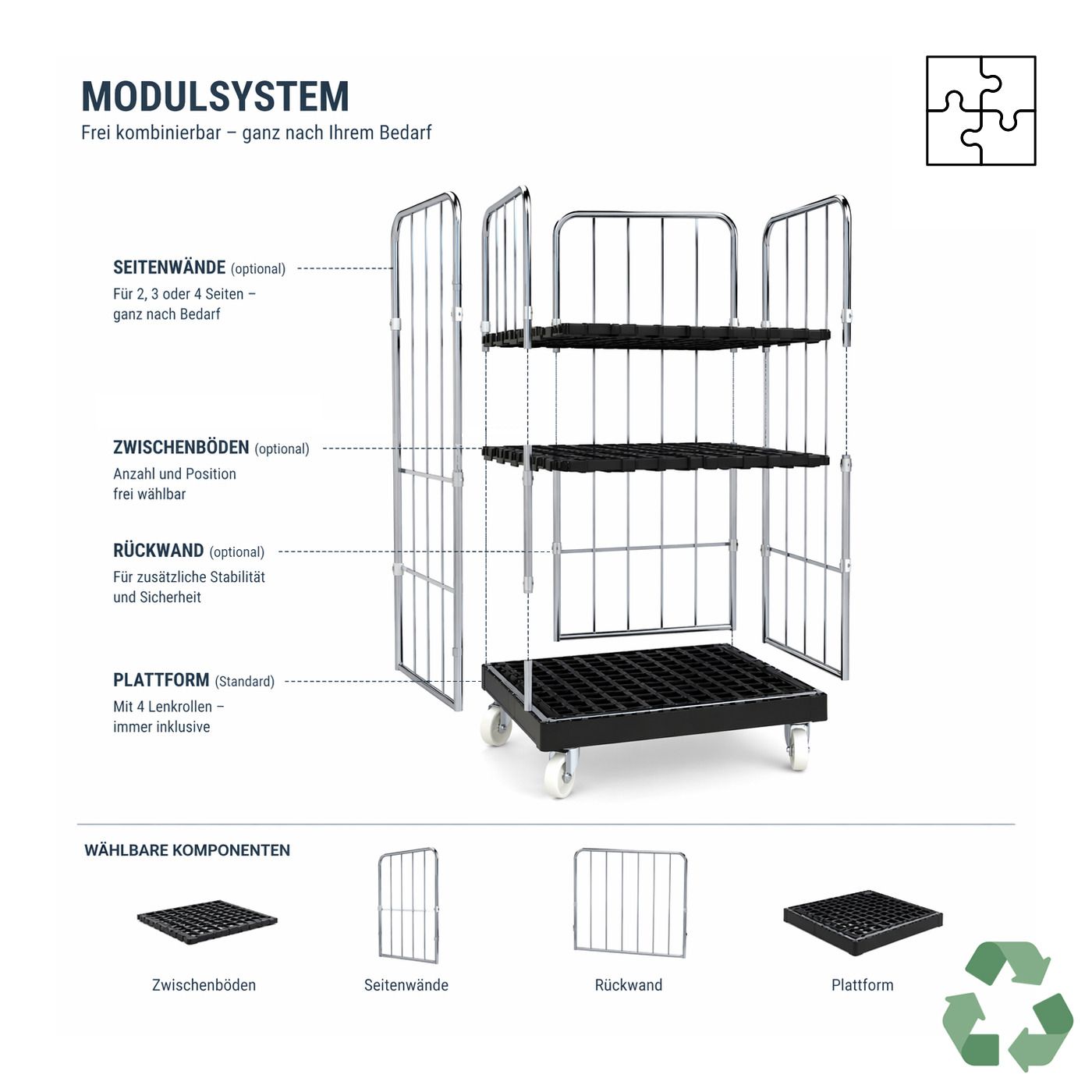

Part of the Ecoflex Basic system

This configuration is an extended version within the Ecoflex Basic system, offering more stability than the open 2-sided solution.

At the same time, the system remains fully flexible: the roll container can be expanded at any time – for example with doors, shelves, or a top cover.

This allows you to build a solution tailored precisely to your operational needs.

Ecoflex adapts to your material flow – modular, flexible, and future-proof.



Your benefits at a glance

Improved transport safety
Rear panel prevents goods from shifting backwards.

Stable load guidance
3-sided design ensures better control during transport.

High load capacity
Base platform supports up to 500 kg.

Open accessibility
Easy access from the front and top.

Robust & durable
Recycled plastic platform and galvanized steel construction.

Expandable system
Fully compatible with all Ecoflex Basic components.



Typical applications

• Warehousing and intralogistics
• Order picking
• Production and internal supply
• Internal transport
• Transport of sensitive or taller goods



Conclusion

The Ecoflex Basic roll container with base platform and 3 side panels offers increased stability and reliable load control. It is ideal for safe transport while remaining flexible and expandable within the Ecoflex system.
