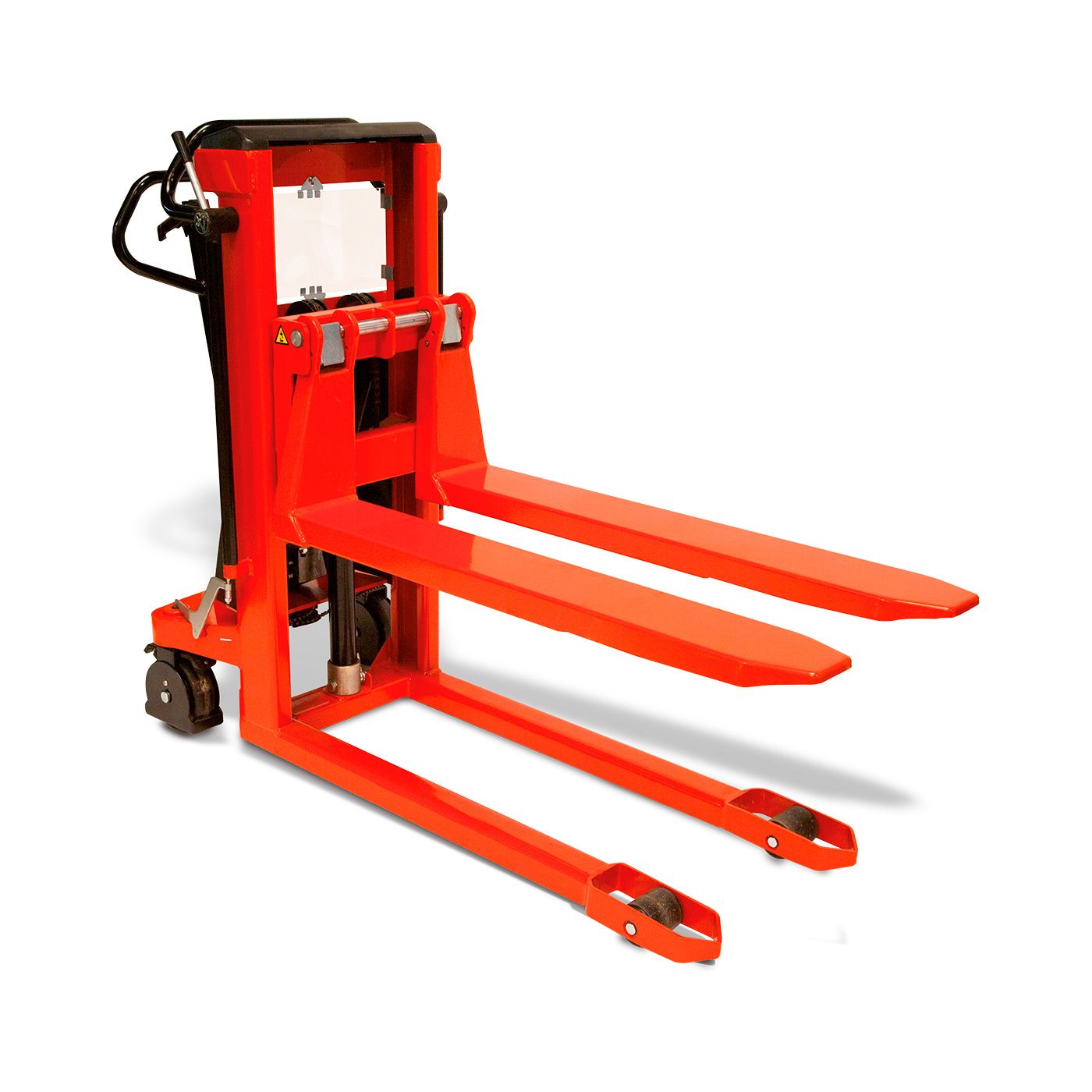

LF - Logitrans®, highlifter with adjustable fork arms

In stock

Item number
UNSPSC
24101606

Load-bearing capacity (kg)
1000

Lifting heights min./max. (mm)
85 / 920

Lifting height max. (mm)

Fork length (mm)
1150

Fork width (mm)

Load center (mm)

Fork load-carrying width (mm)
350 - 560 einstellbar

Total length x width (mm)
1685 x 680

Fork rollers Ø x width (mm)
75 x 90

Lifting speed
8/26 per Pumpenschlag

Weight (kg)
254 (ohne Batterie)
Grouped product items
Product Name Qty


We deliver stock items within
24 hours free of charge*!


*Within Austria from € 250,-

Transport, lift and stack with the Logitrans®-LF hand stacker

Great flexibility and effectiveness: goods can be transported, lifted and handled in many different ways with just one device.

With the design, great importance was attached to safety and ergonomic working conditions - the Logiflex can be adapted to the individual user.

Product details:

  • Sturdy, welded profile steel construction
  • Arrangement of all operating functions in the drawbar
  • Impact-resistant protective screen
  • LF MINI 1002/1650 with free lift of 330 mm
  • Adjustable forks as standard,
  • Activation of the parking brake by hand lever
  • Steering wheels and fork rollers with polyamide tires
  • On requestalso available with wide track chassis!

Your ADVANTAGES:

EFFECTIVENESS

  • Optimum maneuverability
  • Many different optional extras
  • Adjustable forks
  • Low weight
  • Manual switch between normal and quick lift
  • Forced control of the steering wheels

SECURITY

  • Transparent protective screen
  • Location of the parking brake
  • All operating functions in the drawbar
  • Foot protection
  • Shielded Chains

ERGONOMICS

  • Ergonomically correct drawbars
  • Individual Settings

STABILITY

  • Robust construction
  • Long lifespan
  • Low maintenance costs
