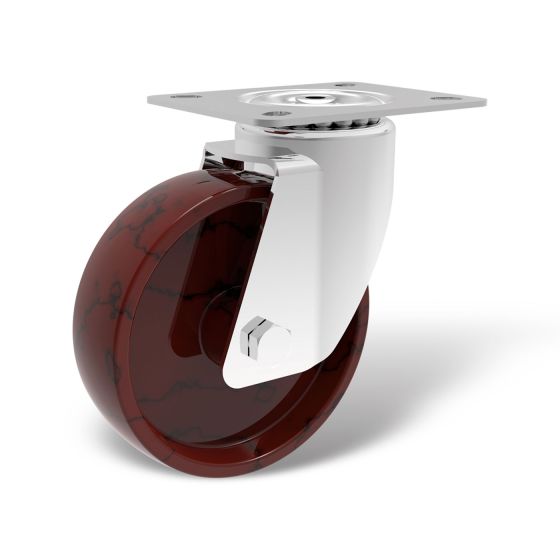

Swivel castor, wheel type KPXTW

In stock

Item number
UNSPSC
31162701

Diameter (mm)
100

Wheel width (mm)
35

Construction height (mm)
131

Load-bearing capacity (kg)
230

Arrester

Bearing type
Plain bearing

Wheel material
Polyamide/Polypropylene

Fastening plates external dimensions (LxB) (mm)
100 x 85

Fastening hole diameter (mm)
9

Jib length (mm)
42

Fastening method
Anschraubplatte

Hole spacing (a x b) (mm)
80 x 60
Grouped product items
Product Name Qty
Serie KPXTW

Starting resistance

Rolling resistance

Driving noise

Abrasion




We deliver stock items within
24 hours free of charge*!


*Within Austria from € 250,-
Stainless steel swivel forks with top plate in material quality 1.4301 (AISI 304). Swivel head with double ball race. The top plate is directly riveted to the fork to ensure smooth movement. The swivel head play is set specifically for high temperature applications. Swivel head without grease for environments with strict regulations on cleanliness and temperature resistance, RoHS – Reach compliant; The wheels of the series KPXTW are reinforced wheels for extra high temperatures up to +400 °C. Special compound combined with first choice fibers and molded under extremely high pressure joined to extreme temperature process which creates an impressive high quality, durable, versatile and guaranteed wheel.
