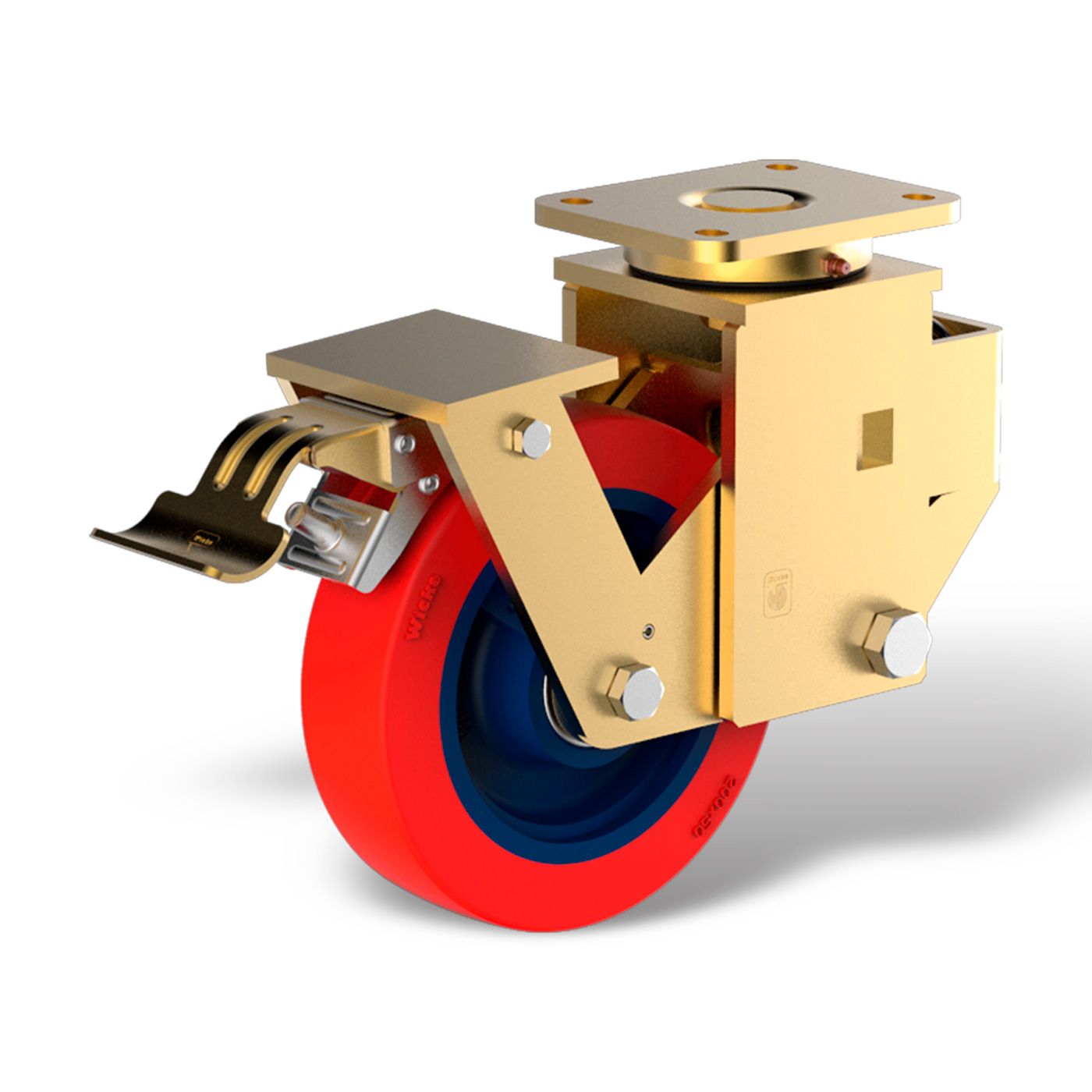

TG LLAKF 3/6/250/60K-FSTF

Steering forks with plate attachment of the LLAKF series are heavy-duty welded steel constructions, the fork is yellow chromated. The slewing ring in the fork head is supported twice with an axial grooved ball bearing (DIN 711/ISO 104) and tapered roller bearing (DIN 720/ISO 355). In the series, the load is absorbed by a spring assembly consisting of a steel compression spring and an elastomer spring element. The spring forces can be varied with other spring packages on customer request.

Wheels in the TG series consist of a cast rim made of high-quality gray cast iron, onto which a soft polyurethane tire, Wicke Redthane® 75° Shore A, is cast. The Redthane® tire, which is connected to the rim with a special adhesion promoter, is abrasion-resistant, has low rolling and starting resistance, very good traction properties and runs extremely quietly. The tire is cut-resistant with very good values for tear resistance and tear propagation resistance. The wheels are equipped with a deep groove ball bearing. Fv: 1000; Fe: 7500; Fw: 28
