TE LVK 3/160/50K-FSTRR
  €153.16 Regular Price €161.22
exkl. MwSt./Stk.

5% Online-Rabatt

You save 8,06 €

Delivery time 10 Days

TE LVK 3/160/50K-FSTRR


Item number
34619

Part description
TE LVK 3/160/50K-FSTRR
UNSPSC
31162701

Diameter (mm)
160

Wheel width (mm)
50

Construction height (mm)
215

Load-bearing capacity (kg)
570

Arrester
with front stop

Bearing type
Prescision ball bearing

Wheel material
Polyurethane
Wheel material
Polyurethane

Fastening plates external dimensions (LxB) (mm)
135 x 110

Fastening hole diameter (mm)
11

Jib length (mm)
53

Fastening method
Anschraubplatte

Hole spacing (a x b) (mm)
105 x ( 75/80)
Reconfigure

TE LVK 3/160/50K-FSTRR
  €153.16 Regular Price €161.22

5% Online-Rabatt

You save 8,06 €

Delivery time 10 Days

Serie TE

Starting resistance

Rolling resistance

Driving noise

Abrasion




We deliver stock items within
24 hours free of charge*!


*Within Austria from € 250,-

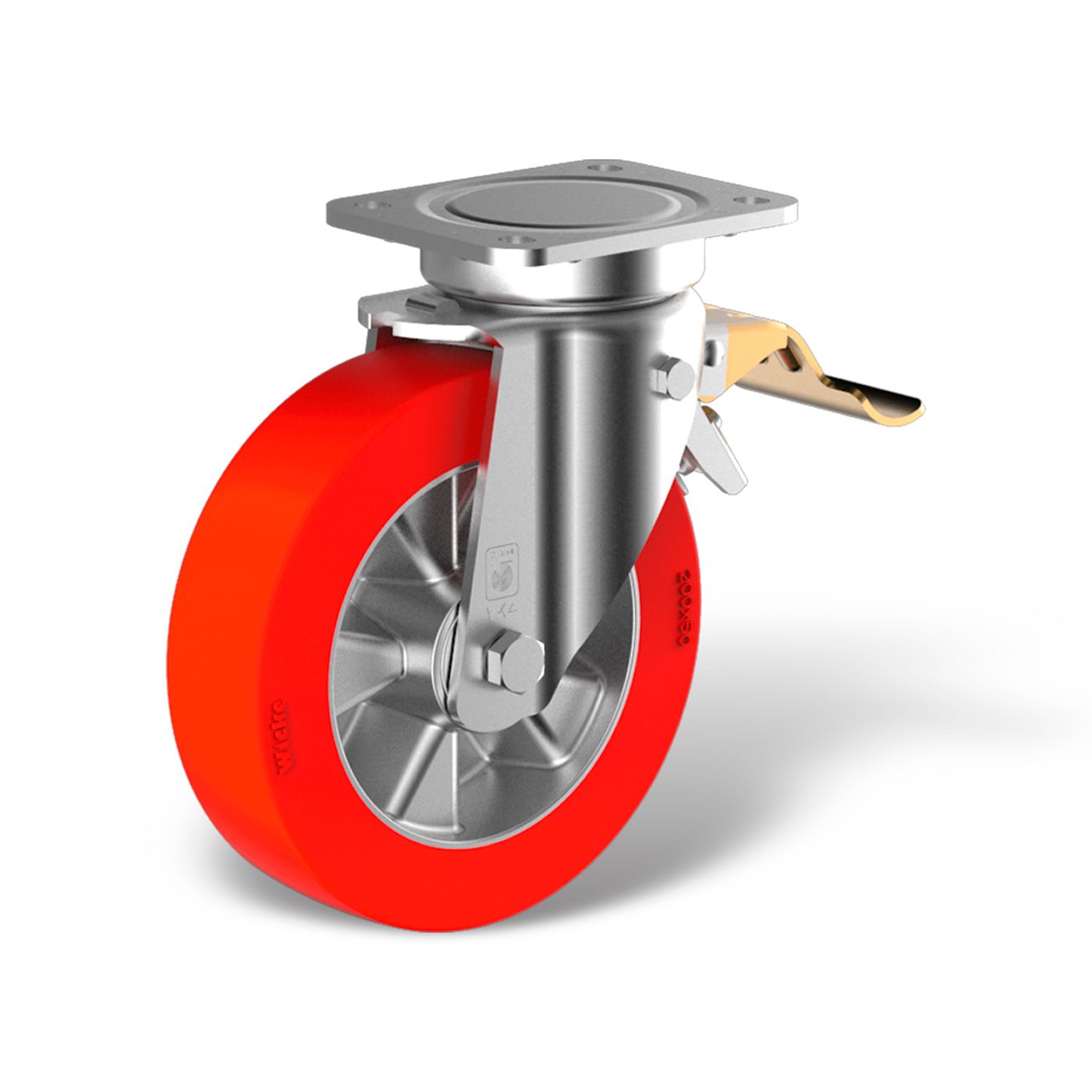

Sheet steel housing with plate mounting. There is a sealed 2RS ball bearing in the fork crown. The ball bearing is protected against the ingress of dirt and dust. The base plate with four screw holes is firmly screwed to the fork part and secured to ensure the greatest possible ease of movement with the least play in the fork head.

Wheels from the TE series consist of an aluminum rim on which a soft polyurethane tire, Wicke Redthane, is mounted ® 75° Shore A, is poured. The Redthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant, has low rolling and starting resistance, very good traction properties and runs extremely quietly. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings as standard.
