TE LVK 3/150/50K
Item number
34374
Part description
TE LVK 3/150/50K
UNSPSC
31162701
Diameter (mm)
150
Wheel width (mm)
50
Construction height (mm)
210
Load-bearing capacity (kg)
550
Arrester
without Arrester
Bearing type
Prescision ball bearing
Wheel material
Polyurethane
Wheel material
Polyurethane
Fastening plates external dimensions (LxB) (mm)
135 x 110
Fastening hole diameter (mm)
11
Jib length (mm)
53
Fastening method
Anschraubplatte
Hole spacing (a x b) (mm)
105 x ( 75/80)
TE LVK 3/150/50K
Price On Demand
5% Online-Rabatt
You save 0 €

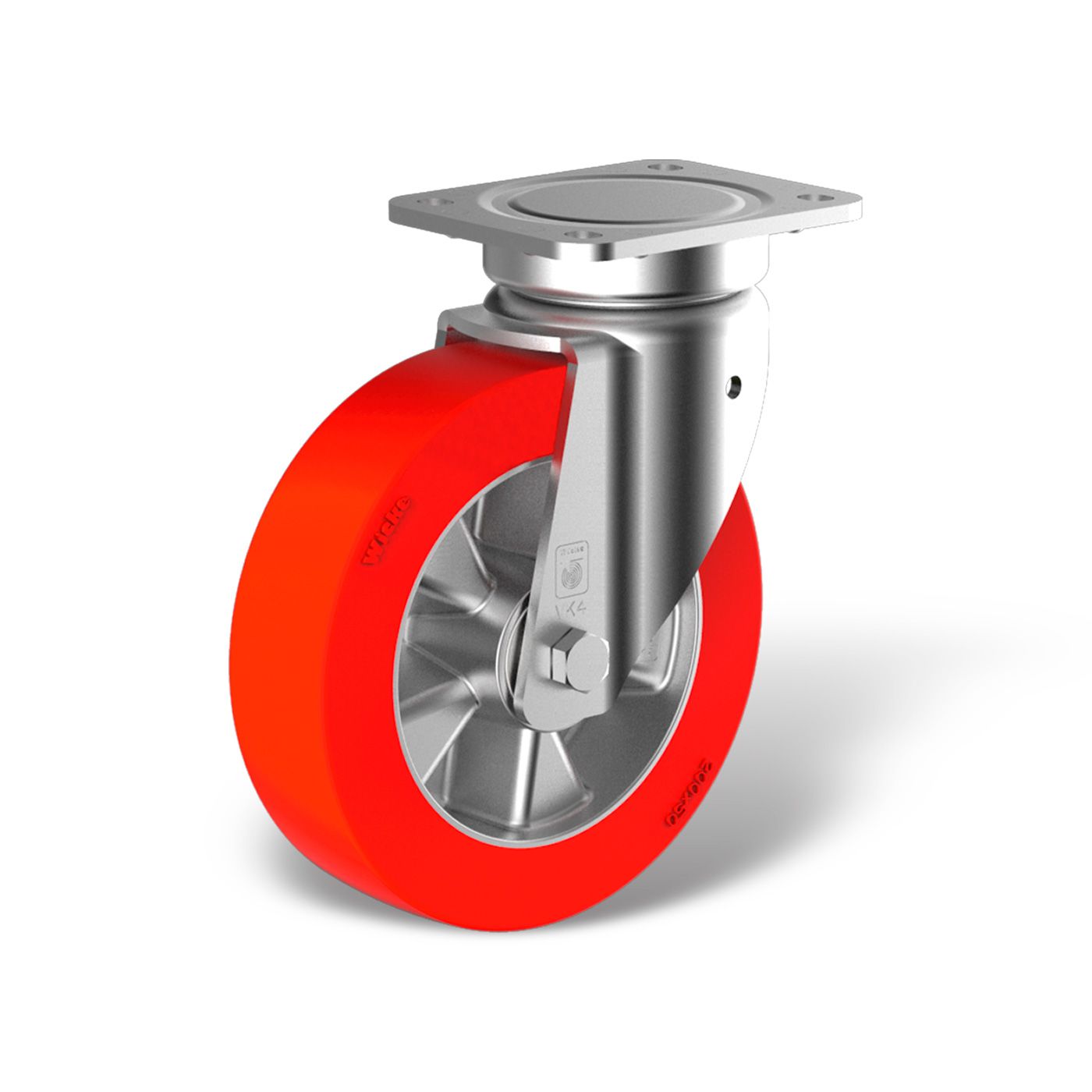

Sheet steel housing with plate mounting. There is a sealed 2RS ball bearing in the fork crown. The ball bearing is protected against the ingress of dirt and dust. The base plate with four screw holes is firmly screwed to the fork part and secured to ensure the greatest possible ease of movement with the least play in the fork head.
Wheels from the TE series consist of an aluminum rim on which a soft polyurethane tire, Wicke Redthane, is mounted ® 75° Shore A, is poured. The Redthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant, has low rolling and starting resistance, very good traction properties and runs extremely quietly. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings as standard.
Wheels from the TE series consist of an aluminum rim on which a soft polyurethane tire, Wicke Redthane, is mounted ® 75° Shore A, is poured. The Redthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant, has low rolling and starting resistance, very good traction properties and runs extremely quietly. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings as standard.
