TE L 1/160/50K-V
  €75.34 Regular Price €79.30
exkl. MwSt./Stk.
5% Online-Rabatt
You save 3,96 €

TE L 1/160/50K-V
Item number
35338
Part description
TE L 1/160/50K-V
UNSPSC
31162701
Diameter (mm)
160
Wheel width (mm)
50
Construction height (mm)
190
Load-bearing capacity (kg)
400
Arrester
without Arrester
Bearing type
Prescision ball bearing
Wheel material
Polyurethane
Wheel material
Polyurethane
Fastening plates external dimensions (LxB) (mm)
135 x 110
Fastening hole diameter (mm)
11
Jib length (mm)
60
Fastening method
Anschraubplatte
Hole spacing (a x b) (mm)
105 x ( 75/80)
TE L 1/160/50K-V
  €75.34 Regular Price €79.30
5% Online-Rabatt
You save 3,96 €

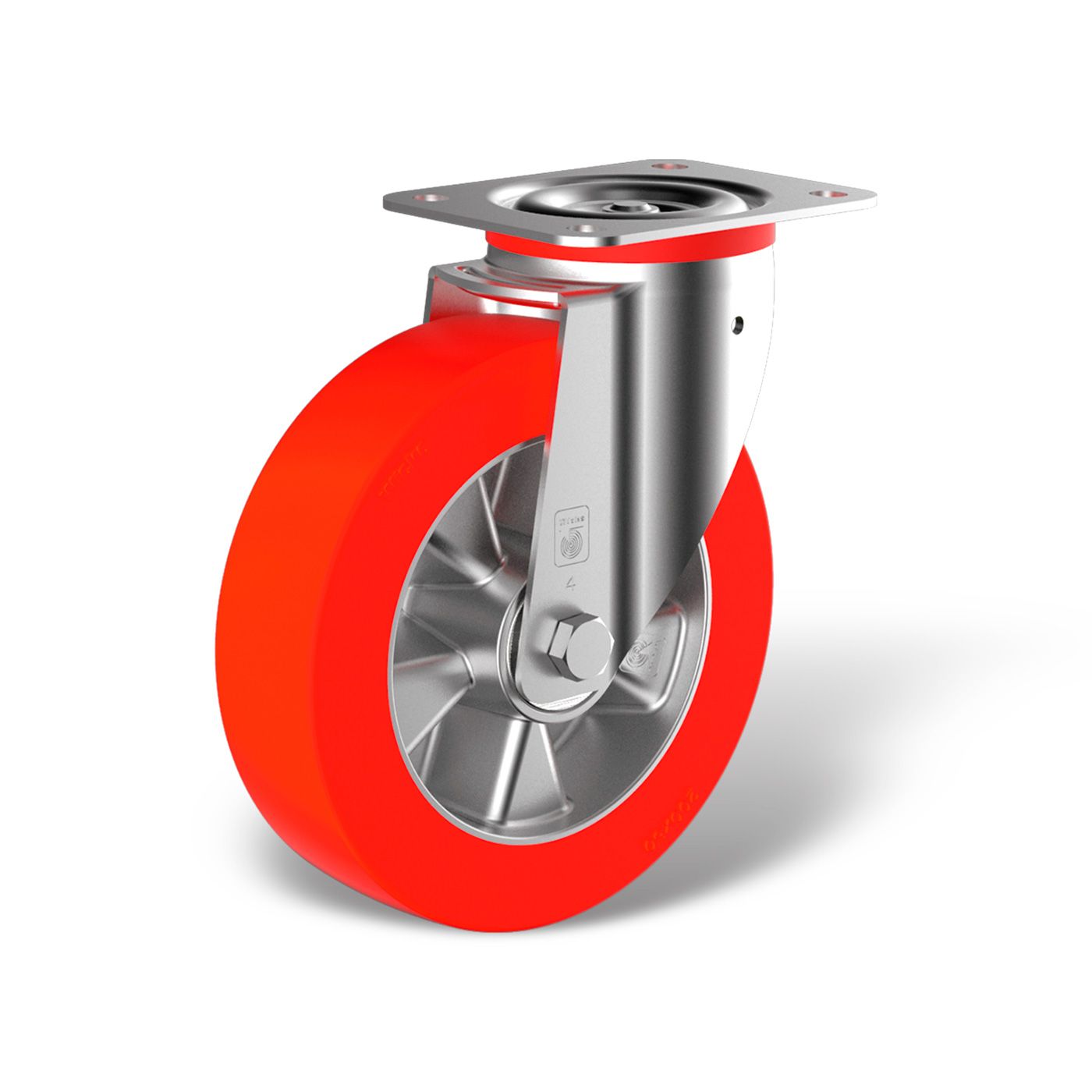

Sheet steel housing with plate mounting. Fork head with double ball crown and sealing ring to prevent the ingress of dirt and dust. The base plate is firmly riveted to the fork part, we pay attention to minimal play in the fork head and high ease of movement.
Wheels of the TE series consist of an aluminum rim on which a soft polyurethane tire, Wicke Redthane® 75° Shore A, is infused. The Redthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant, has low rolling and starting resistance, very good traction properties and runs extremely quietly. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings as standard.
Wheels of the TE series consist of an aluminum rim on which a soft polyurethane tire, Wicke Redthane® 75° Shore A, is infused. The Redthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant, has low rolling and starting resistance, very good traction properties and runs extremely quietly. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings as standard.
