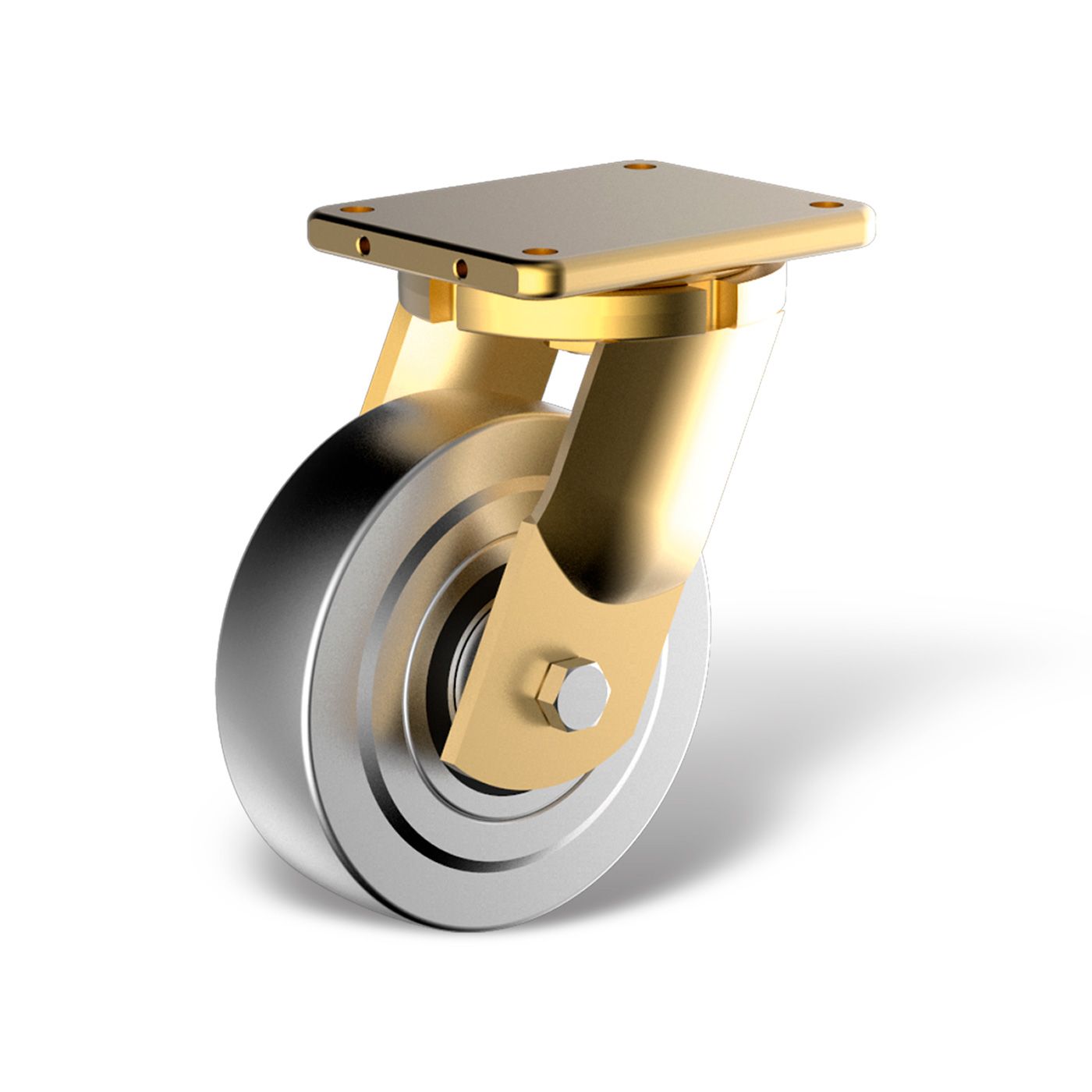

S LAK 4/200/55K

Steering forks with plate attachment from the LAK series are super-heavy-duty welded steel constructions. The slewing ring in the fork head is supported twice with an axial grooved ball bearing (DIN 711/ISO 104) and tapered roller bearing (DIN 720/ISO 355). Although the bearings are lubricated for life, they can also be relubricated via a grease nipple if necessary. Fork part and fork head are screwed together with a very robust central bolt and secured with a spot weld, the fork is yellow chromated.

S series wheels are unbreakable and heat-resistant steel wheels. The wheels are available with ball bearings as standard, but can be equipped with tapered roller bearings on request. Can be used at temperatures from -25 to +120 °C.
