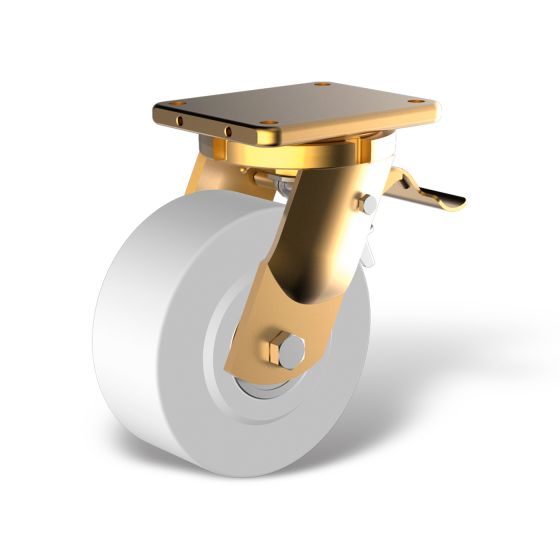

KSG LAK 6/250/80K-FSTR

Steering forks with plate attachment from the LAK series are super-heavy-duty welded steel constructions. The slewing ring in the fork head is supported twice with an axial grooved ball bearing (DIN 711/ISO 104) and tapered roller bearing (DIN 720/ISO 355). Although the bearings are lubricated for life, they can also be relubricated via a grease nipple if necessary. The fork part and fork head are screwed together with a very robust central bolt and secured with a spot weld, the fork is yellow chromated.

Wheels in the KSG series are turned cast polyamide wheels made from high-quality polyamide PA 6 G in the color natural (white) in a super-heavy design . The wheels are available with deep groove ball bearings as standard. Cast polyamide can be used at temperatures from -25 to +80 °C.
