KS LLAK 1/125/45K

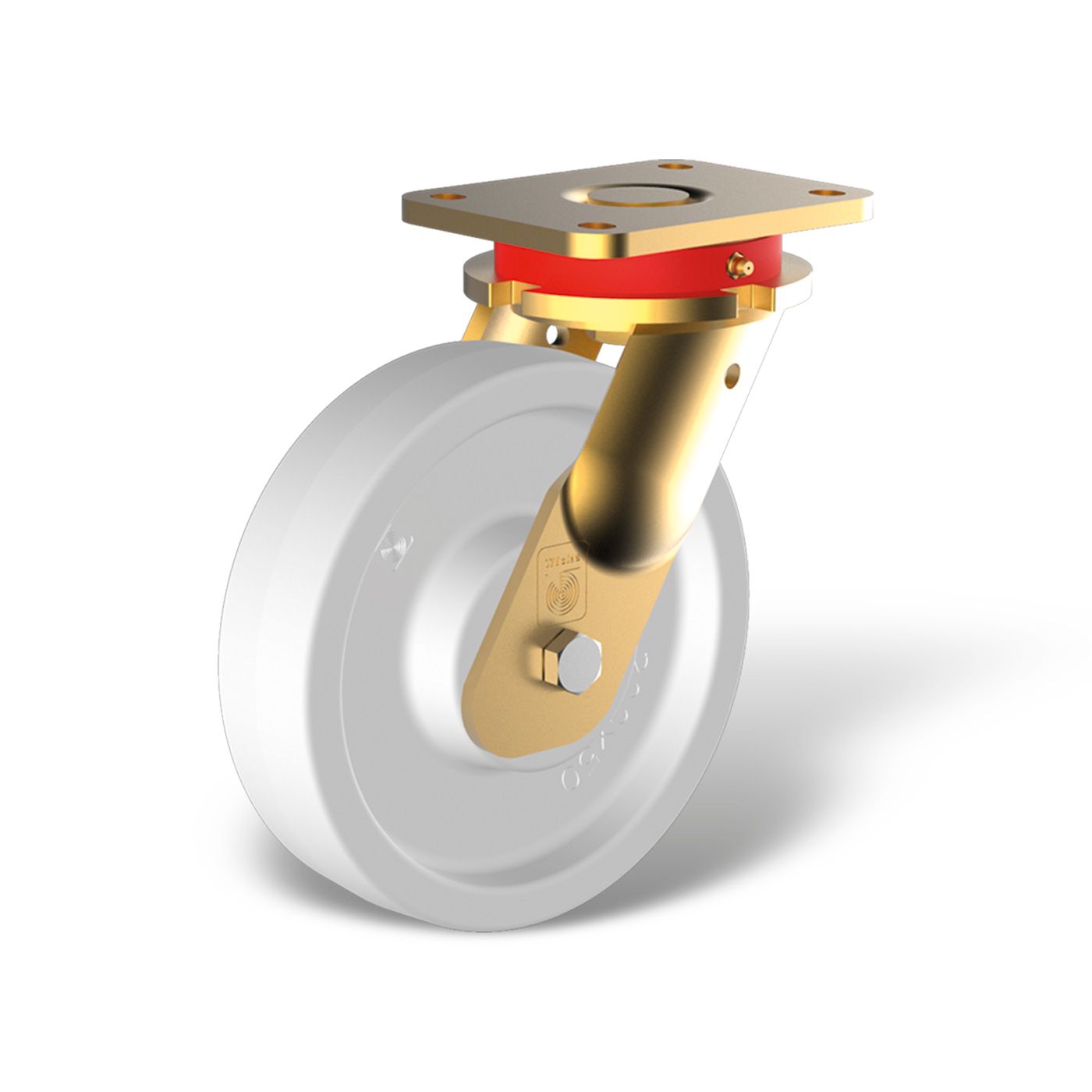

LLAK series plate mount steering forks are heavy duty welded steel construction. The slewing ring in the fork head is supported twice with an axial grooved ball bearing (DIN 711/ISO 104) and tapered roller bearing (DIN 720/ISO 355). Although the bearings are lubricated for life, they can also be relubricated via a grease nipple if necessary. The fork part and fork head are screwed to a very robust central bolt and secured by riveting, the fork is yellow chromated.

Wheels in the KS series are heavy-duty injection-moulded plastic wheels made from high-quality polyamide PA 6 in the color natural (white). The wheels are optionally available with plain or deep groove ball bearings.
