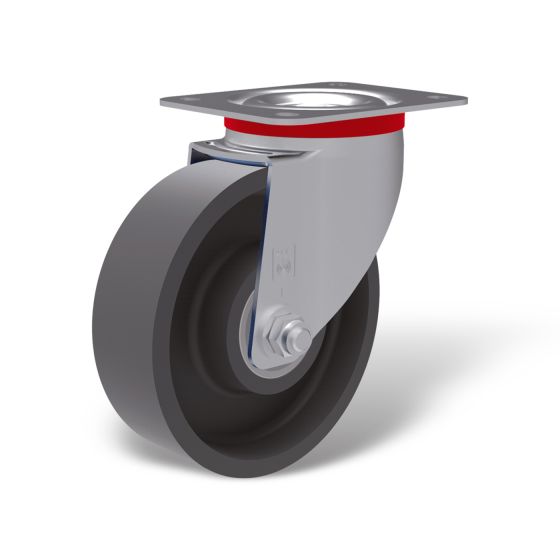

G LL 03/125/32K
  €39.33 Regular Price €41.40
exkl. MwSt./Stk.
5% Online-Rabatt
You save 2,07 €

G LL 03/125/32K
Item number
33288
Part description
G LL 03/125/32K
UNSPSC
31162701
Diameter (mm)
125
Wheel width (mm)
35
Construction height (mm)
155
Load-bearing capacity (kg)
200
Arrester
without Arrester
Bearing type
Prescision ball bearing
Wheel material
Molding
Wheel material
Molding
Fastening plates external dimensions (LxB) (mm)
105 x 80
Fastening hole diameter (mm)
9
Jib length (mm)
38
Fastening method
Anschraubplatte
Hole spacing (a x b) (mm)
76/80 x 60
G LL 03/125/32K
  €39.33 Regular Price €41.40
5% Online-Rabatt
You save 2,07 €

Sheet steel housing with plate mounting. Fork head with double ball crown and sealing ring to prevent the ingress of dirt and dust. The base plate is firmly riveted to the fork part, we pay attention to minimal play in the fork head and high ease of movement.
Wheels of the G series are unbreakable and heat-resistant cast wheels made of high-quality gray cast iron. The wheels are available with plain bearings as standard and can be used universally for large loads
Wheels of the G series are unbreakable and heat-resistant cast wheels made of high-quality gray cast iron. The wheels are available with plain bearings as standard and can be used universally for large loads
