EE LLG 03/125/40K
€76.86 Regular Price €80.90
exkl. MwSt./Stk.
5% Online-Rabatt
You save 4,04 €
Available immediately
EE LLG 03/125/40K
Item number
34527
Part description
EE LLG 03/125/40K
UNSPSC
31162701
Diameter (mm)
125
Wheel width (mm)
40
Construction height (mm)
165
Load-bearing capacity (kg)
310
Arrester
without Arrester
Bearing type
Prescision ball bearing
Wheel material
Polyurethane
Wheel material
Polyurethane
Fastening plates external dimensions (LxB) (mm)
100 x 85
Fastening hole diameter (mm)
9
Jib length (mm)
45
Fastening method
Anschraubplatte
Hole spacing (a x b) (mm)
80/75 x 60/55
EE LLG 03/125/40K
€76.86 Regular Price €80.90
5% Online-Rabatt
You save 4,04 €
Available immediately
Related Products
Wheels type EE
Starting at €18.91
Swivel castor, wheel type EE
Starting at €37.15
Fixed castors, wheel type EE
Starting at €32.78
Swivel castor with bolt hole, wheel type EE
Starting at €32.49
Fixed castors, wheel type BG
Starting at €37.53
€76.86 Regular Price €80.90
exkl. MwSt./Stk.
5% Online-Rabatt
You save 4,04 €
Available immediately
Serie EE
Starting resistance
RRolling resistance
Driving noise
Abrasion
Starting resistance
RRolling resistance
Driving noise
Abrasion
We deliver stock items within
24 hours free of charge*!
*Within Austria from € 250,-

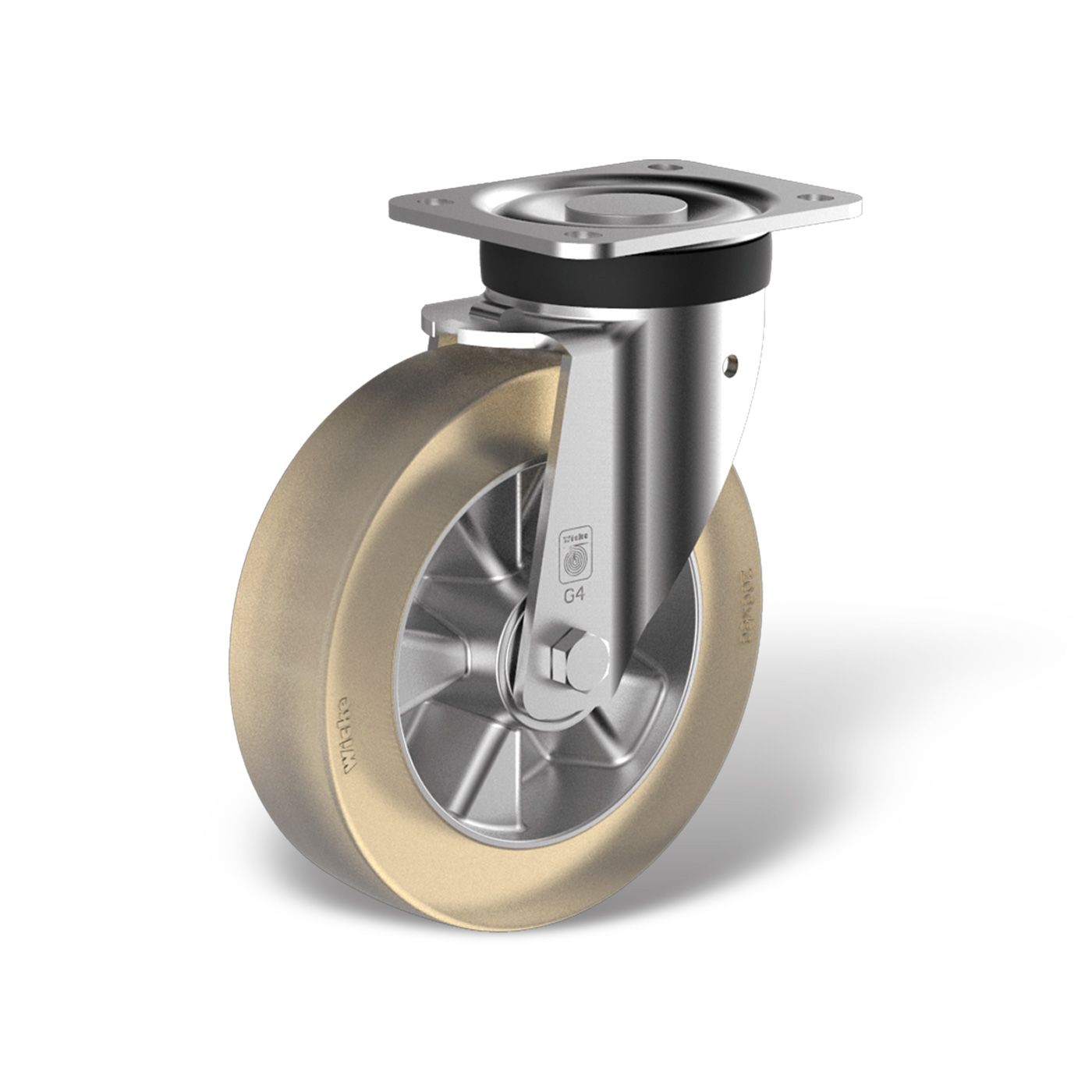

Sheet steel housing with plate mounting. Fork head with double ball race and hardened bearing shells. The greased ball tracks are protected with sealing rings against the ingress of dirt and dust. The base plate is screwed firmly to the fork part and secured, we pay attention to minimal play in the fork head with as much ease as possible.
Wheels of the EE series consist of an aluminum rim with a soft polyurethane tire, Wicke Elasthane® 65° Shore A, is poured. The Elasthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant, has low rolling and starting resistance, very good traction properties and runs extremely quietly. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings as standard.
Wheels of the EE series consist of an aluminum rim with a soft polyurethane tire, Wicke Elasthane® 65° Shore A, is poured. The Elasthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant, has low rolling and starting resistance, very good traction properties and runs extremely quietly. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings as standard.
