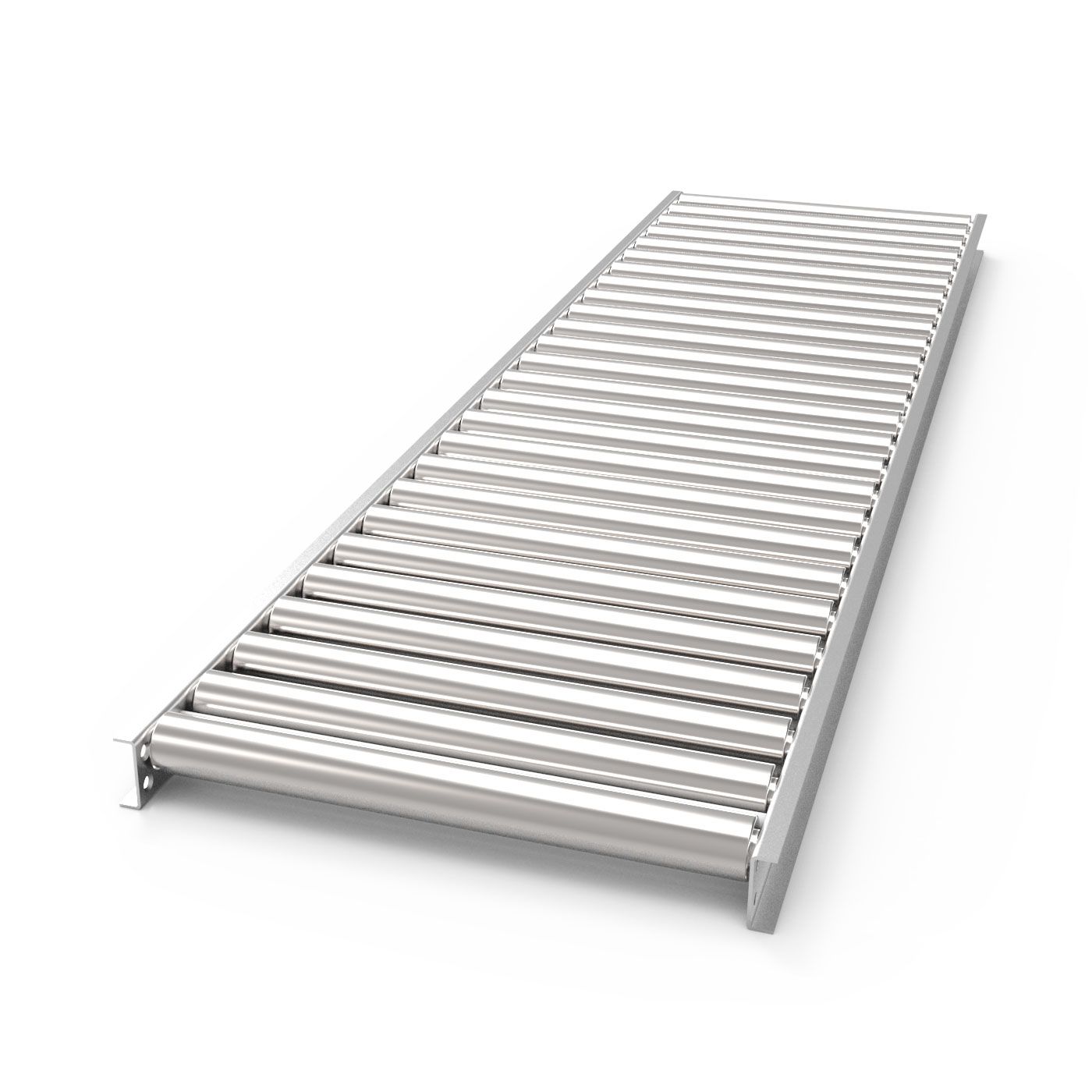

Light duty roller conveyors with steel support rollers
Light duty roller conveyors with steel support rollers Light duty roller conveyors with steel support rollers Light duty roller conveyors with steel support rollers Light duty roller conveyors with steel support rollers

Light duty roller conveyors with steel support rollers

In stock

Item number
UNSPSC
24101701

Usable width (mm)

Length (mm)

Material frame
verzinkt

Frame
U-Profil 20/65/20 x 2

Division (mm)
Grouped product items
Product Name Qty

→ Discover individual solutions with this product



We deliver stock items within
24 hours free of charge*!

*Within Austria from € 250,-

supporting roller:
steel rollers Ø 50 mm, ball bearing with continuous axle, firmly screwed

frame:
galvanized U-profile 20/65/20 mm, screwed with crossbars, total width = useful width + 40 mm

note:
roller upper edge 10 mm above frame profile load capacity: with steel rollers up to 40 kg per conveyed material (approximate value)

Condition of the curve support rollers:
up to track width 300 mm - 1-part rollers for track width 400 mm - 2-part rollers for track width 500-600 mm - 3-part rollers for track width 800 mm - 4-part rollers.
On request also available in stainless steel or with aluminium frame.

Delivery note:
with a pitch of 75 mm the total length of the conveyor belt changes - from 1,000 mm to 975 mm - from 2,000 mm to 1,950 mm In order to achieve a tilt free and smooth running of the conveyed material, the material must rest on at least three rollers. The centre distance or the pitch indicates the dimension from roller centre to roller centre.

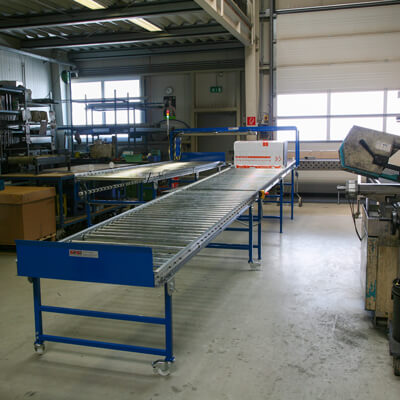

Rollenbahnen Sonderanfertigung
Rollenbahnen Sonderanfertigung
Rollenbahnen Sonderanfertigung

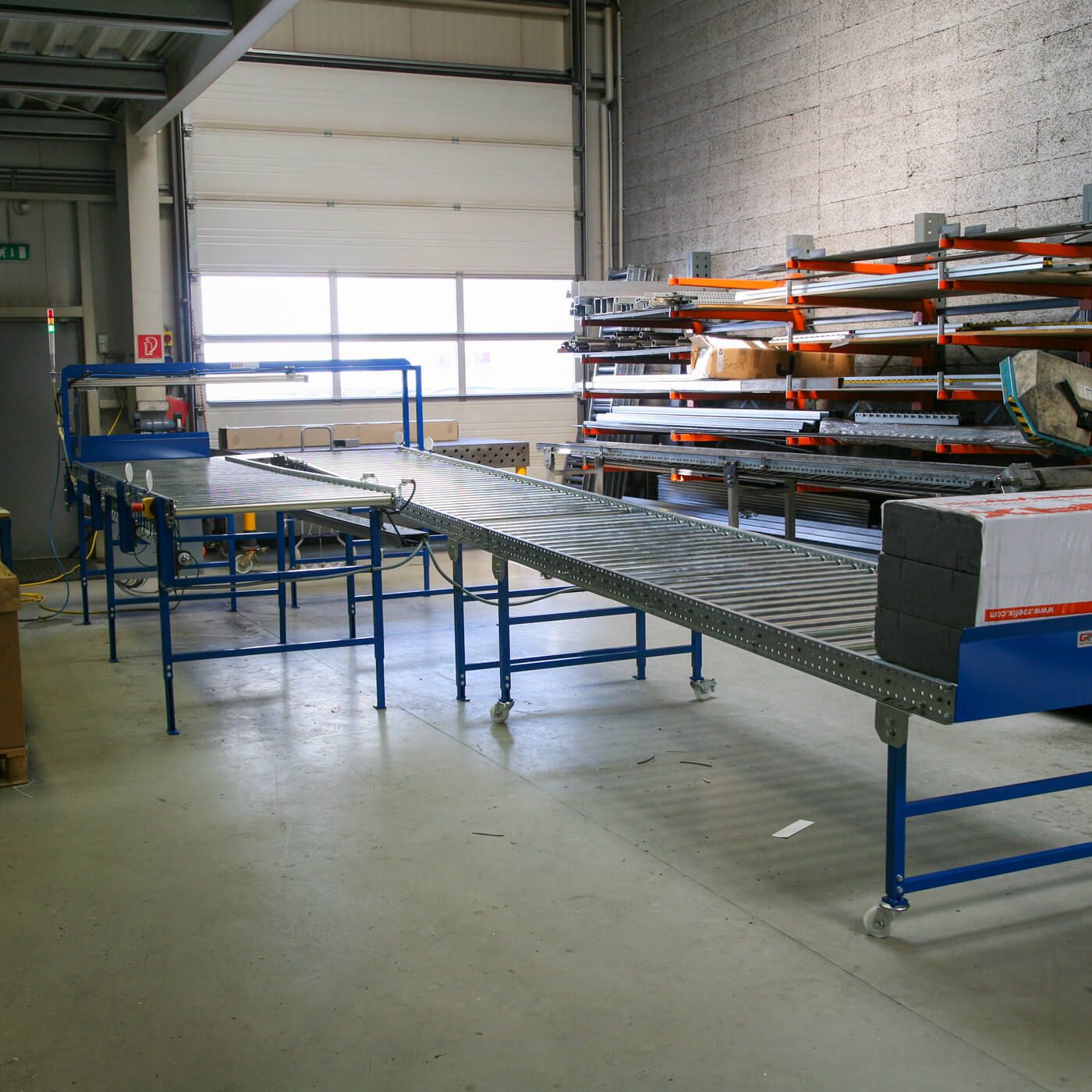

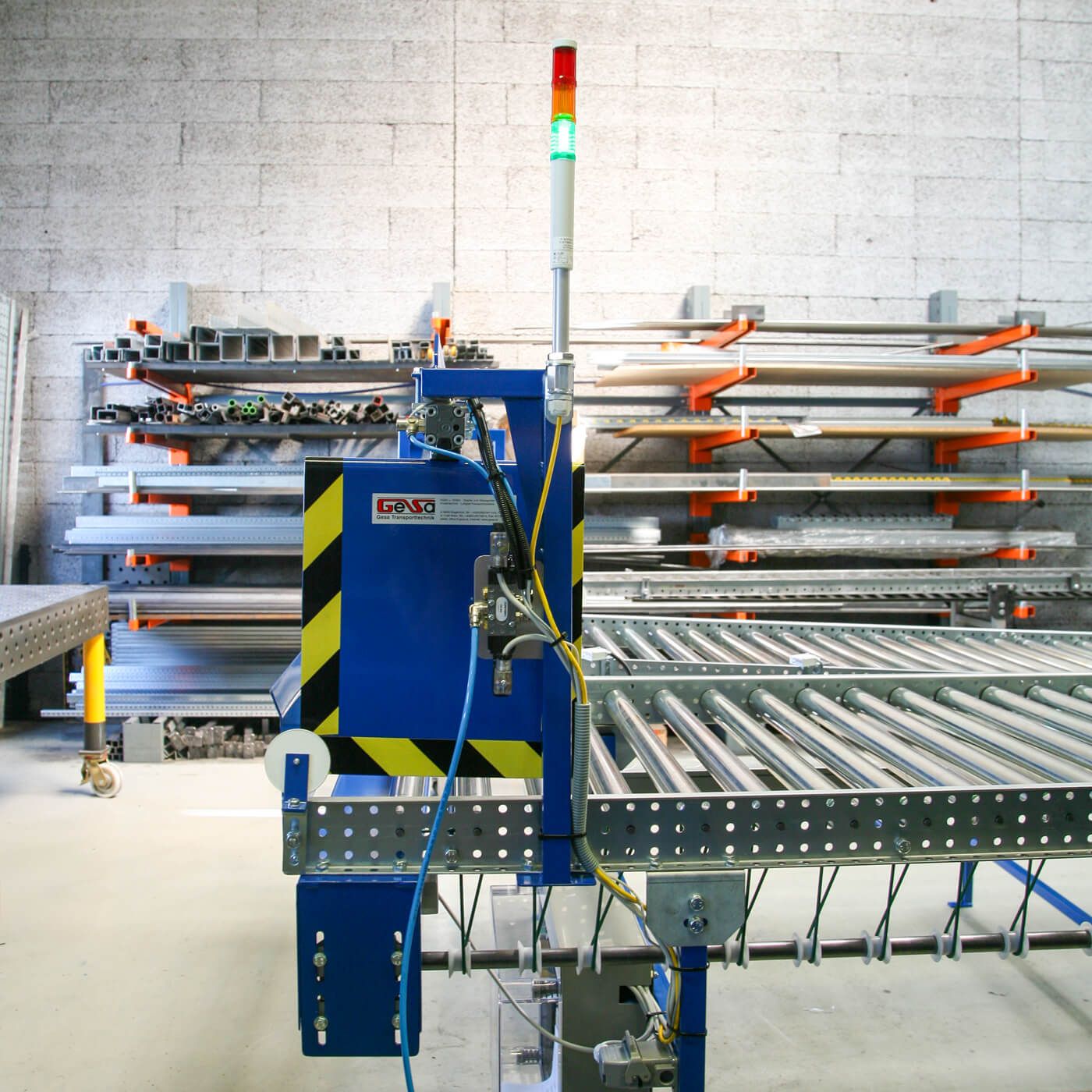

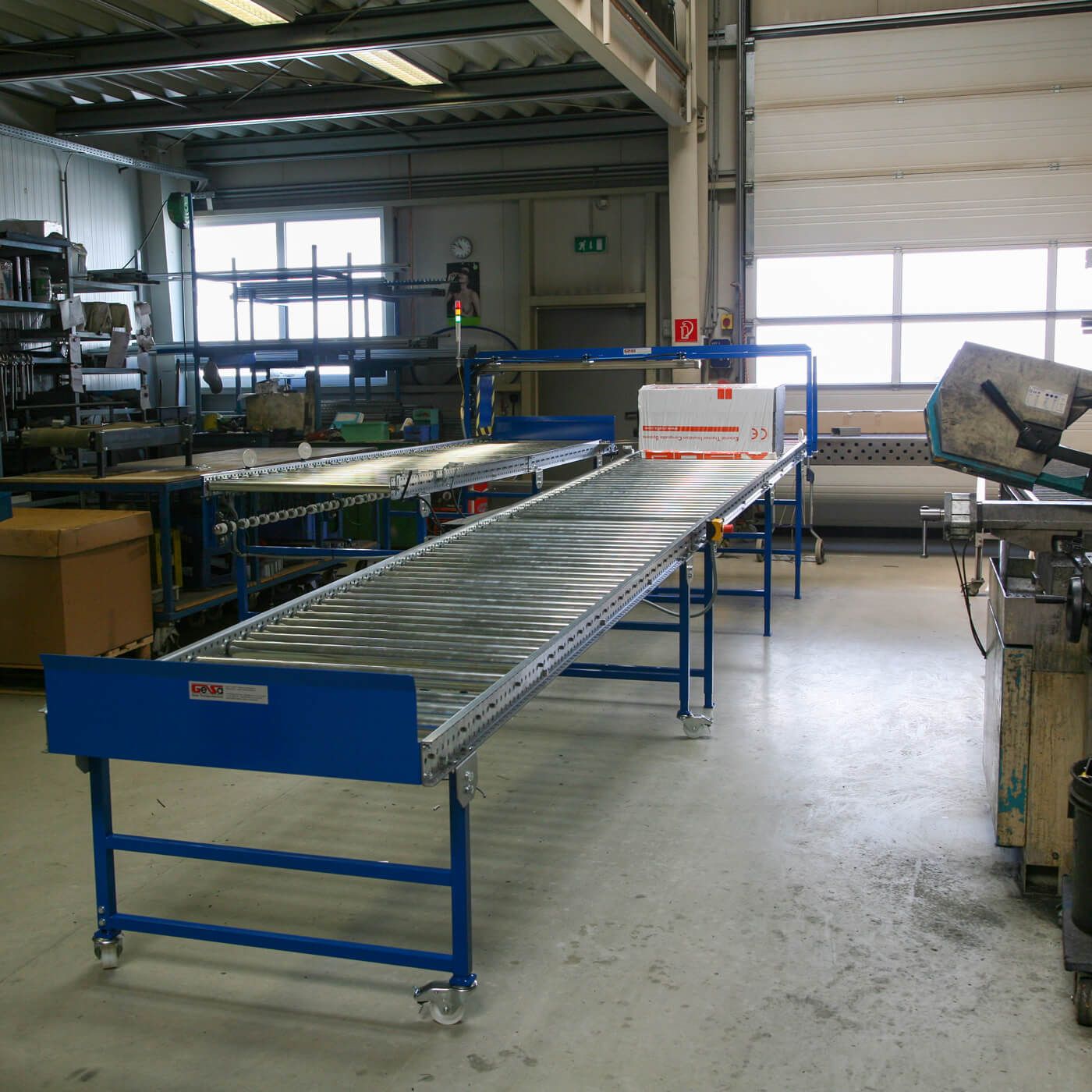

Conveyor system with electric transverse displacement for the production chain

This conveyor system integrates electrical transverse displacement as an essential part of the production chain. By precisely controlling the transverse displacement, the material flow is optimized, which leads to greater flexibility and efficiency in the production processes.

Do you need something similar or have any questions?
Feel free to contact us at +43 463 34114-0 or send us an email at [email protected].

We look forward to hearing from you!
