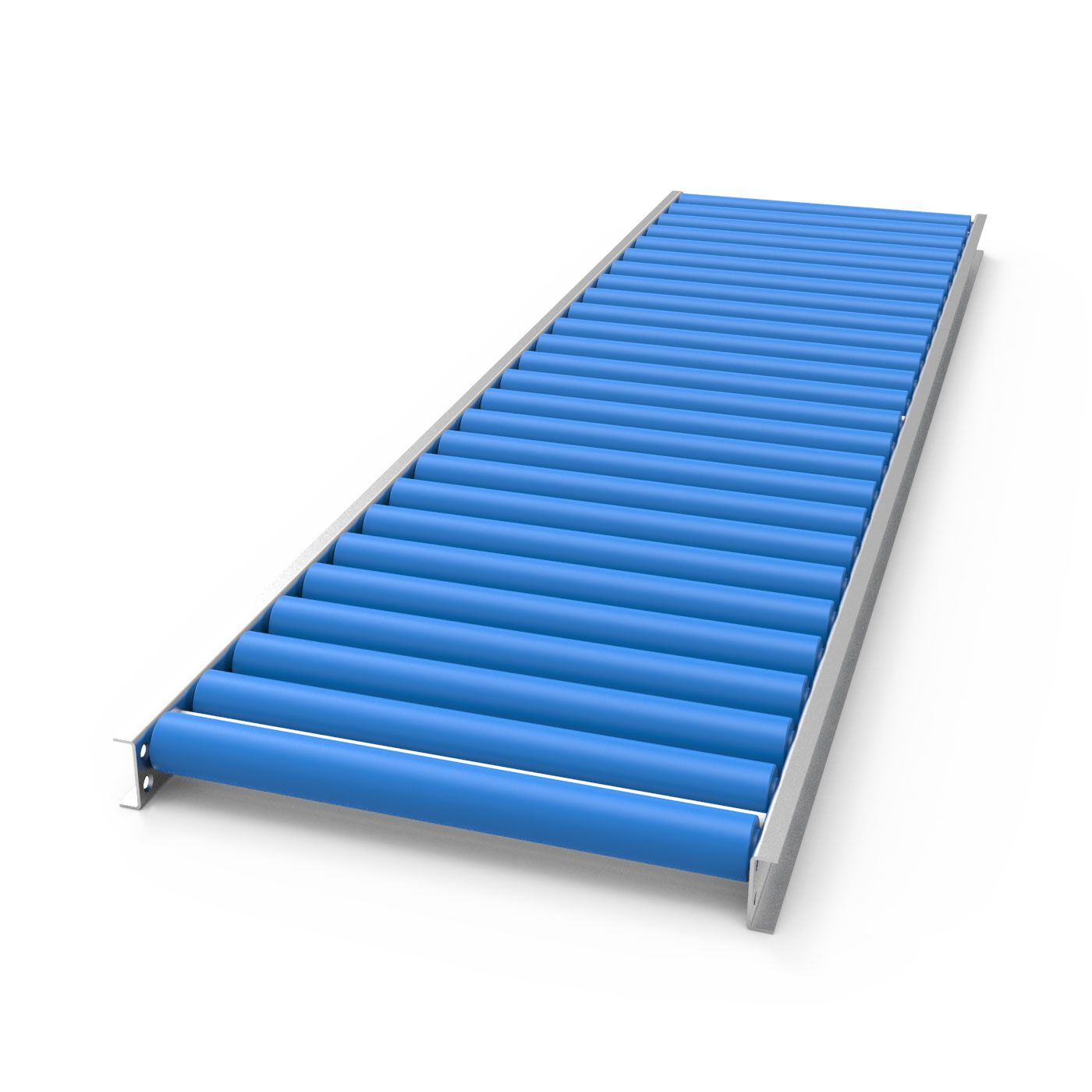

Light duty roller conveyors with plastic support rollers
Light duty roller conveyors with plastic support rollers Light duty roller conveyors with plastic support rollers Light duty roller conveyors with plastic support rollers Light duty roller conveyors with plastic support rollers

Light duty roller conveyors with plastic support rollers

In stock

Item number
UNSPSC
24101701

Usable width (mm)

Length (mm)

Material frame
verzinkt

Frame
U-Profil 20/65/20 x 2

Division (mm)
Grouped product items
Product Name Qty

→ Discover individual solutions with this product



We deliver stock items within
24 hours free of charge*!

*Within Austria from € 250,-

support roller:
plastic rollers Ø 50 mm, ball bearing with continuous axle, firmly screwed frame: galvanized U-profile 20/65/20 mm, screwed with crossbars, total width = useful width + 40 mm

Note:
roller upper edge 10 mm above frame profile

load:
with plastic rollers 20 - 25 kg per conveyed material (approximate value)

Condition of the curve support rollers:
up to track width 300 mm - 1-part rollers for track width 400 mm - 2-part rollers for track width 500-600 mm - 3-part rollers for track width 800 mm - 4-part rollers
On request also available in stainless steel or with aluminium frame.

Delivery note:
with a pitch of 75 mm the total length of the conveyor belt changes - from 1,000 mm to 975 mm - from 2,000 mm to 1,950 mm In order to achieve a tilt free and smooth running of the conveyed material, the material must rest on at least three rollers. The centre distance or the pitch indicates the dimension from roller centre to roller centre.

Rollenbahnen Sonderanfertigung
Rollenbahnen Sonderanfertigung
Rollenbahnen Sonderanfertigung

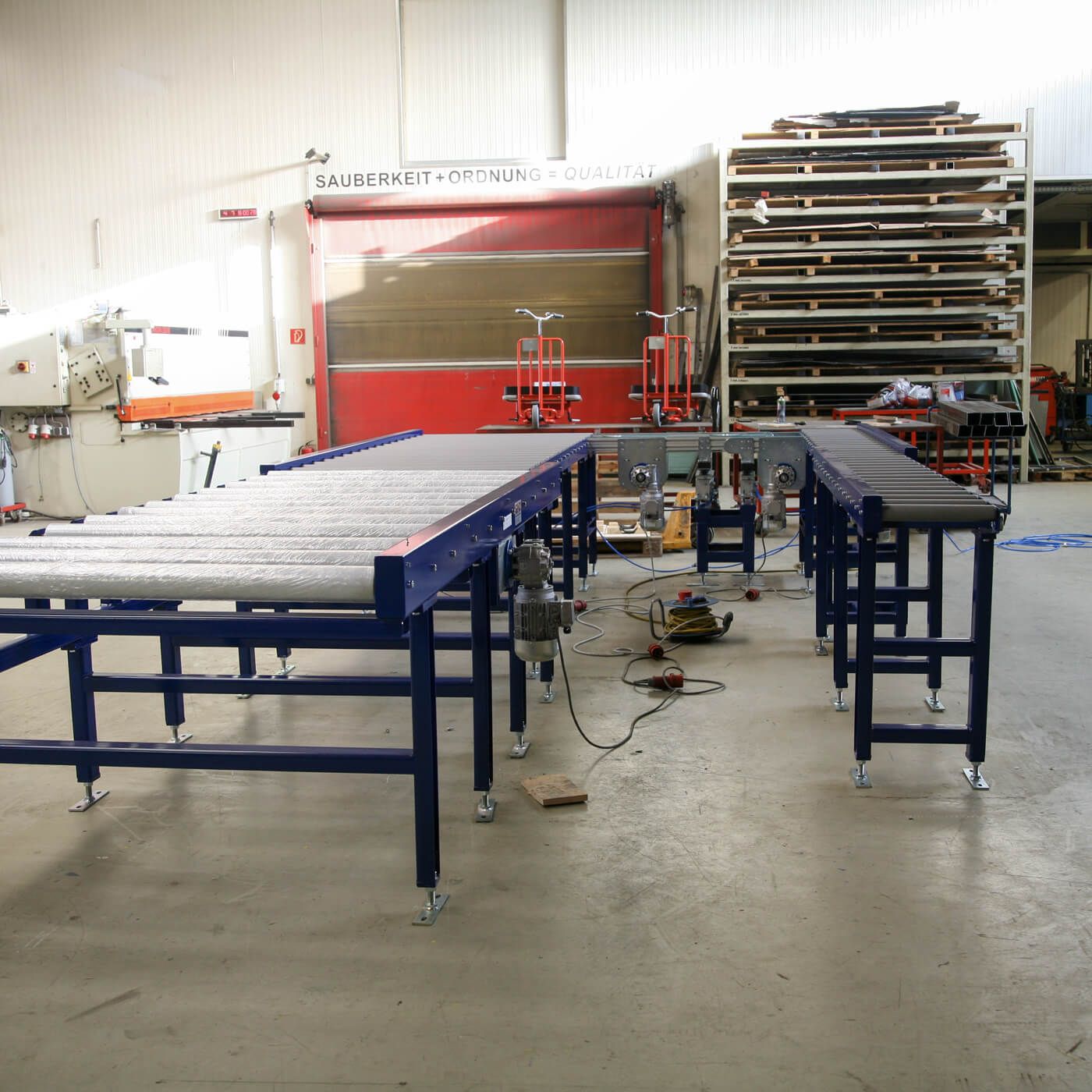

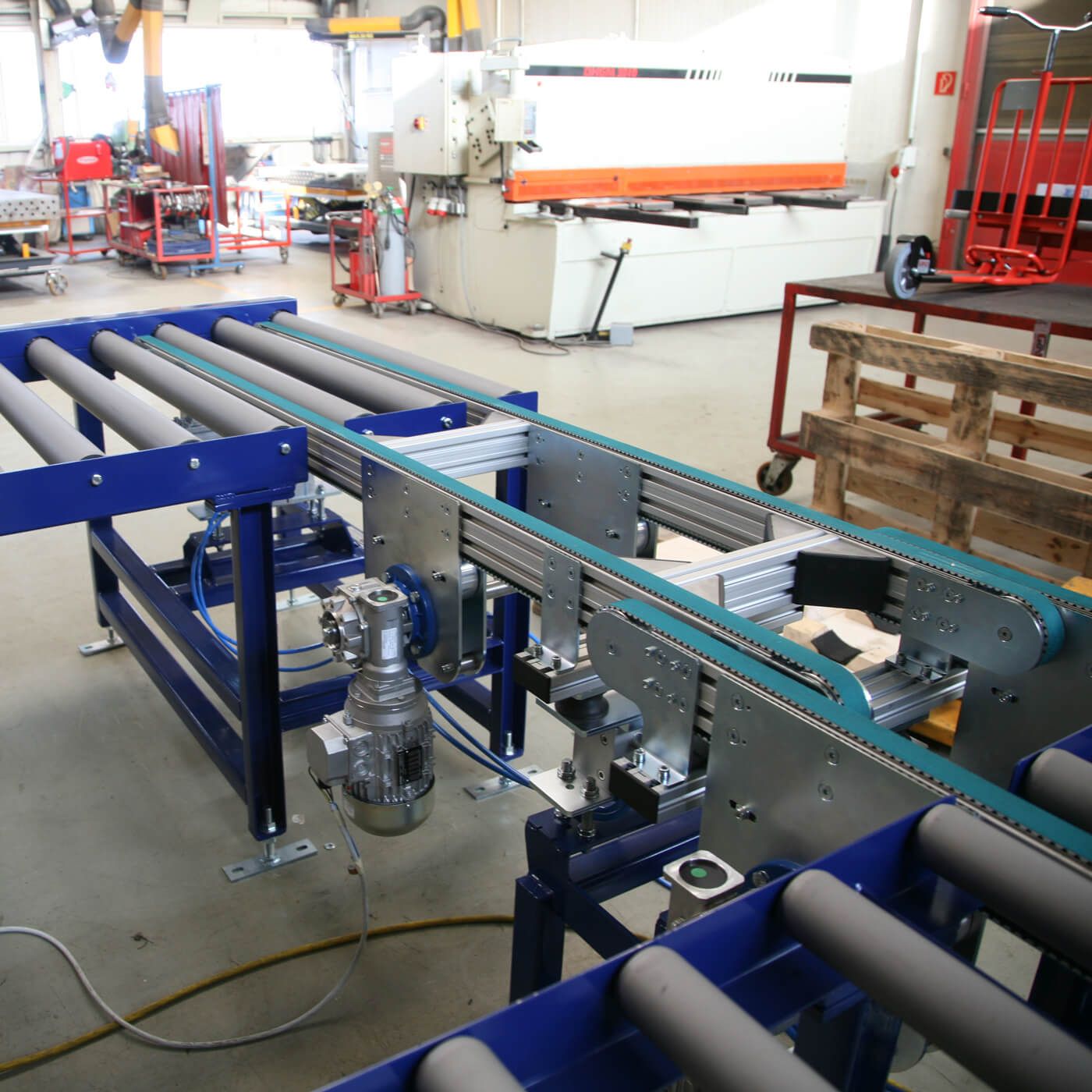

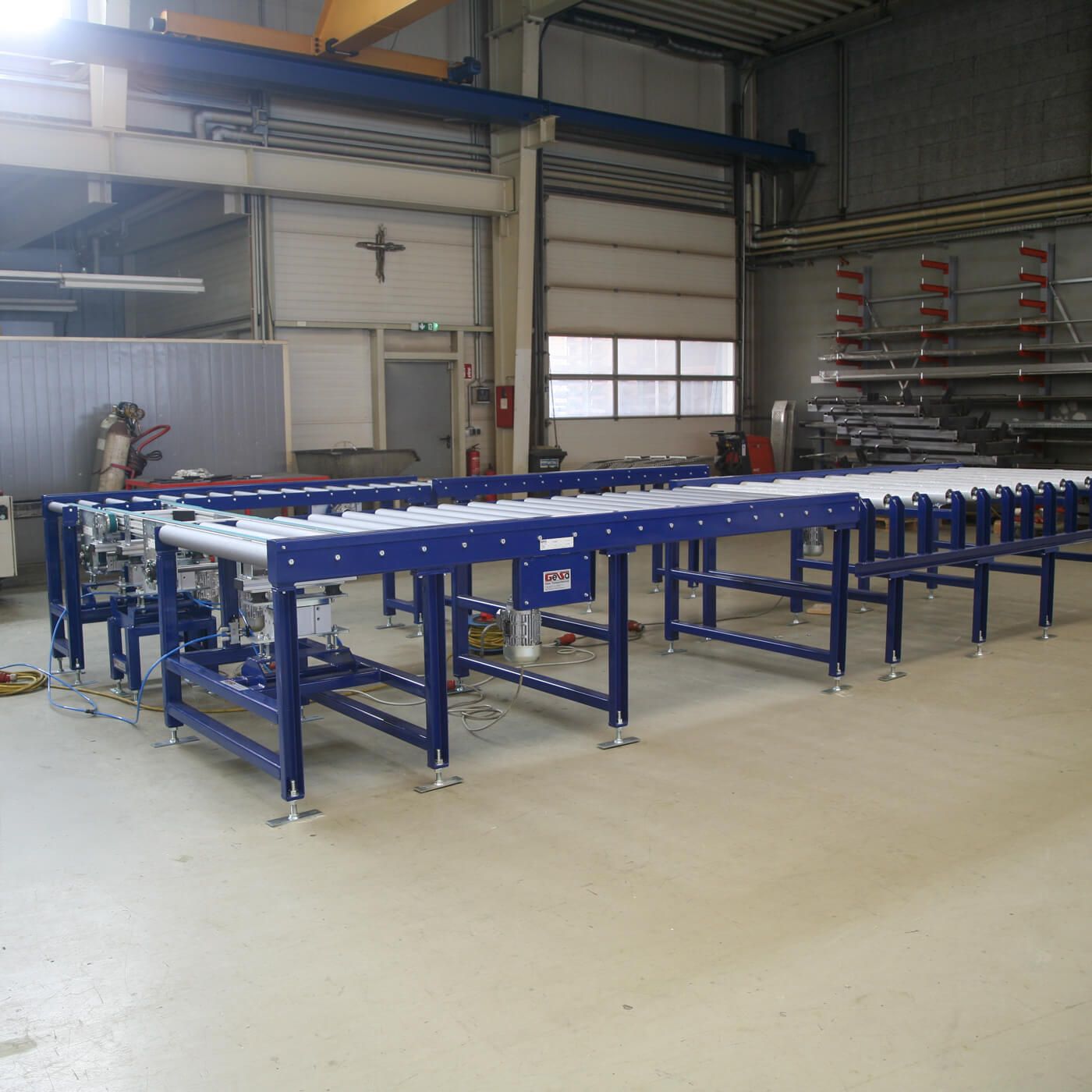

Efficient conveying solution with light roller conveyor and cross conveyors

We have developed a tailor-made conveyor chain for the company's production requirements, consisting of a lightweight roller conveyor with plastic support rollers and additional cross conveyors. This solution ensures smooth material transport and optimizes efficiency in the production line.

Do you need something similar or have any questions?
Feel free to contact us at +43 463 34114-0 or send us an email at [email protected].

We look forward to hearing from you!
