KPMTW LLI 02/125/40G-VV
€56.43 Regular Price €59.40
exkl. MwSt./Stk.
5% Online-Rabatt
You save 2,97 €
Delivery time 7 Days
KPMTW LLI 02/125/40G-VV
Item number
33368
Part description
KPMTW LLI 02/125/40G-VV
UNSPSC
31162701
Diameter (mm)
125
Wheel width (mm)
40
Construction height (mm)
158
Load-bearing capacity (kg)
250
Arrester
without Arrester
Bearing type
Plain bearing
Wheel material
Polyamide/Polypropylene
Wheel material
Polyamide/Polypropylene
Fastening plates external dimensions (LxB) (mm)
100 x 85
Fastening hole diameter (mm)
9
Jib length (mm)
44
Fastening method
Anschraubplatte
Hole spacing (a x b) (mm)
80 x 60
KPMTW LLI 02/125/40G-VV
€56.43 Regular Price €59.40
5% Online-Rabatt
You save 2,97 €
Delivery time 7 Days
Related Products
Fixed castors, wheel type KPMTW
Price On Demand
Wheels type KPMTW
Starting at €8.27
Swivel castor with bolt hole, wheel type KPMTW
Price On Demand
€56.43 Regular Price €59.40
exkl. MwSt./Stk.
5% Online-Rabatt
You save 2,97 €
Delivery time 7 Days
Serie KPMTW
Starting resistance
Rolling resistance
Driving noise
Abrasion
Starting resistance
Rolling resistance
Driving noise
Abrasion
We deliver stock items within
24 hours free of charge*!
*Within Austria from € 250,-

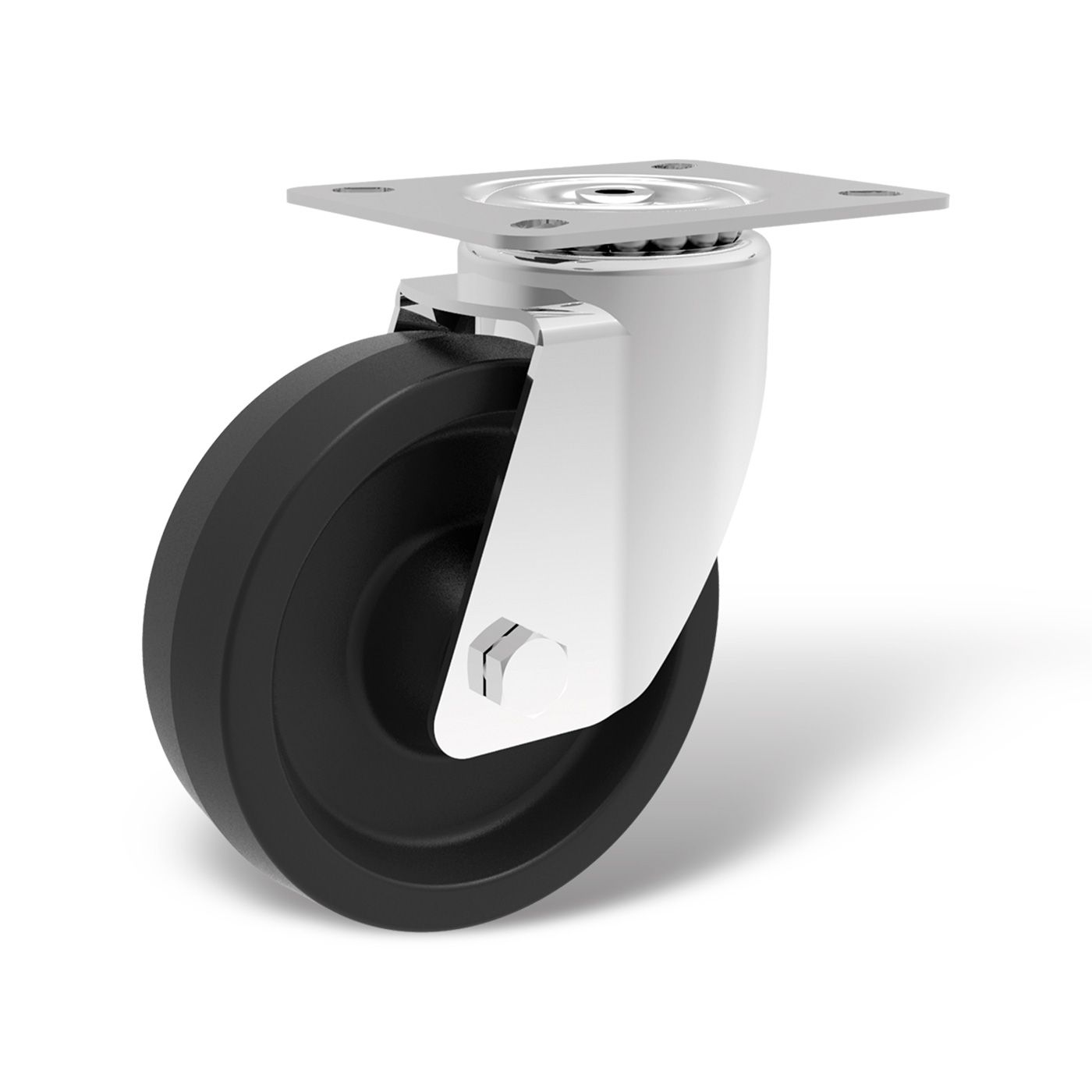

Stainless steel sheet housing made of material 1.4301 (AISI 304) with plate mounting. Fork head with double ball bearing and slewing ring play adapted to high-temperature use. Slewing ring without grease for the highest demands on cleanliness and temperature resistance, RoHS compliant.
Wheels from the KPMTW series are one-piece injected DITHERM wheels made of high-quality compounds and special fibers, heat-resistant up to +300 °C. High chemical resistance to many aggressive media. They meet all recommended flammability, smoke and toxicity standards. 100% suitable for the food industry and for any oven application that requires a continuous temperature up to +280 °C - with peaks of +300 °C. Also for cooling down to -40 °C. DITHERM wheels have excellent resistance to temperature differences.
Wheels from the KPMTW series are one-piece injected DITHERM wheels made of high-quality compounds and special fibers, heat-resistant up to +300 °C. High chemical resistance to many aggressive media. They meet all recommended flammability, smoke and toxicity standards. 100% suitable for the food industry and for any oven application that requires a continuous temperature up to +280 °C - with peaks of +300 °C. Also for cooling down to -40 °C. DITHERM wheels have excellent resistance to temperature differences.
