SLPX 01/75/40 K
  €256.60 Regular Price €270.10
exkl. MwSt./Stk.
5% Online-Rabatt
You save 13,5 €
Available immediately
SLPX 01/75/40 K
Item number
27649
Part description
SLPX 01/75/40 K
Diameter (mm)
75
Wheel width (mm)
40
Construction height (mm)
113 / 123
Load-bearing capacity (kg)
300
Bearing type
Prescision ball bearing
Wheel material
Polyurethane
Wheel material
Polyurethane
Fastening plates external dimensions (LxB) (mm)
105 x 85
Fastening hole diameter (mm)
9
Jib length (mm)
40
Fastening method
Anschraubplatte
Hole spacing (a x b) (mm)
80 x 60
SLPX 01/75/40 K
  €256.60 Regular Price €270.10
5% Online-Rabatt
You save 13,5 €
Available immediately

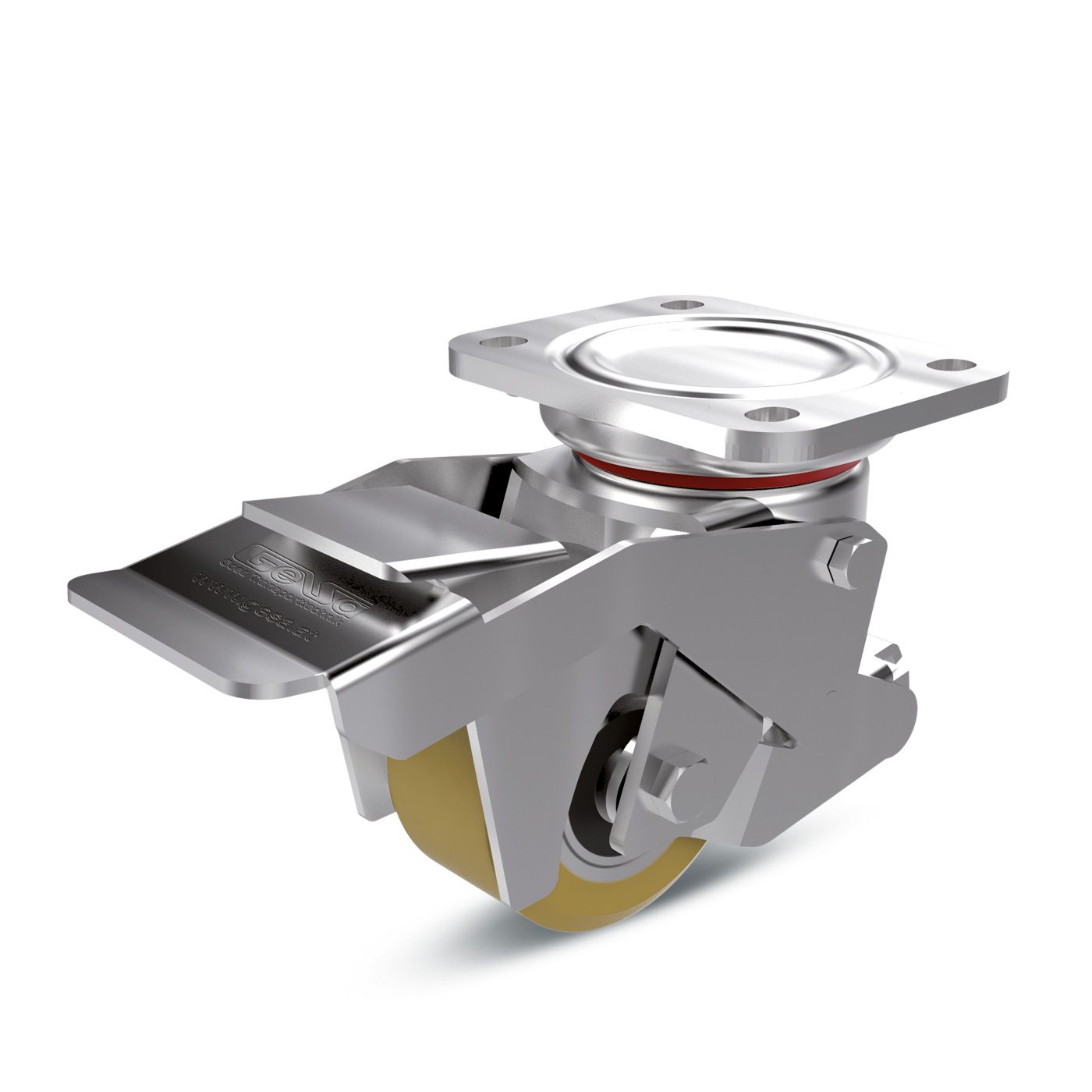

Swivel castor with integrated, leveling machine base. Easy operation thanks to foot pedals. Reinforced sheet steel housing, galvanized, double hardened ball race with seal and grease nipple. Polyamide wheel (KN) Ø 75 mm with ball bearing, polyurethane wheel (PN) Ø 75 mm with ball bearing. Base made of black polyamide, Ø 40 mm with non-slip sole made of NBR rubber.
Height adjustment max. 8 mm by turning the leveling caster around the base by moving your foot. Ground clearance 5mm. It can be increased to 20 mm by swiveling the stand (thresholds). Ramps can be driven on with an incline of 20°.
