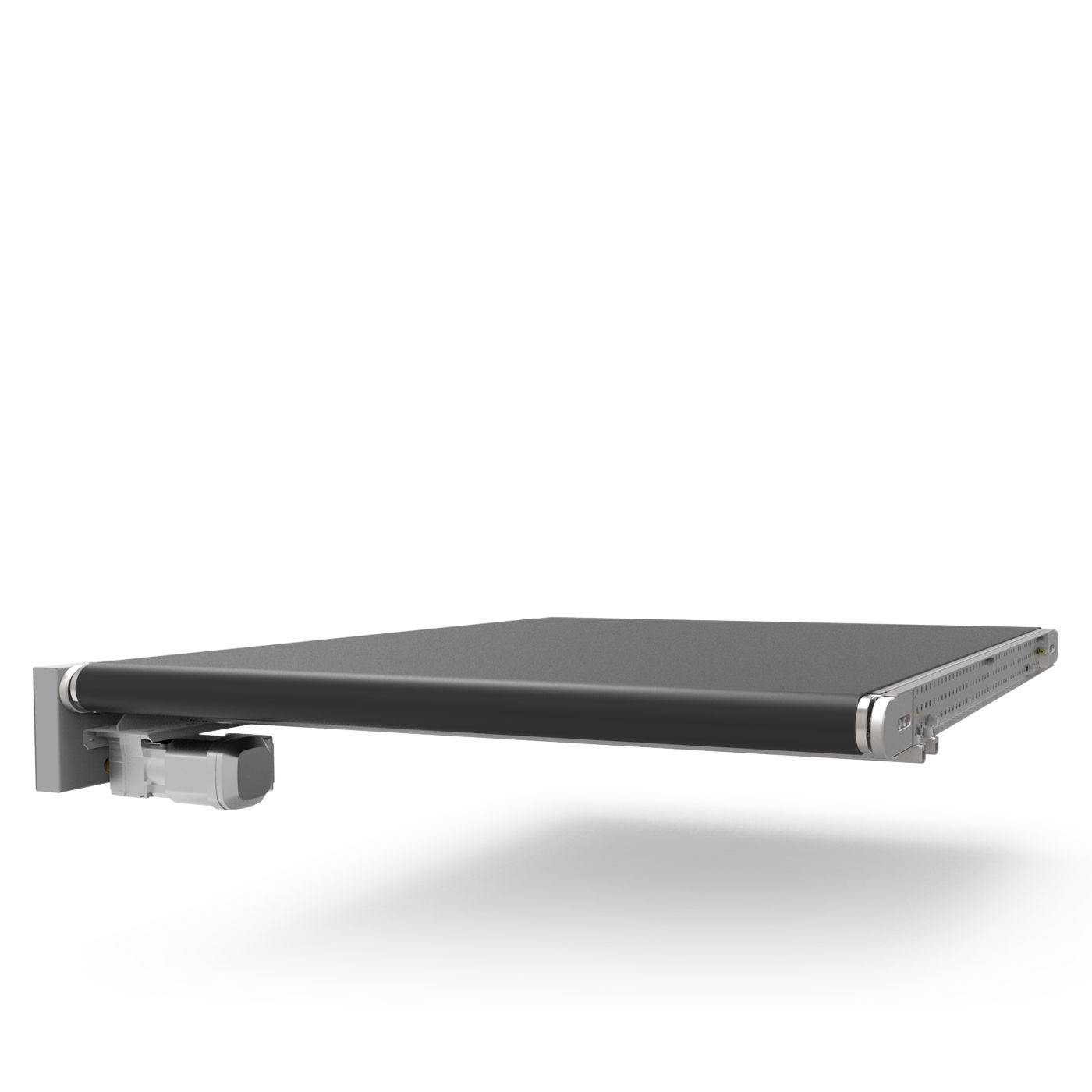

Conveyor belts with chain drive type MBK 100, steel C-profile
Conveyor belts with chain drive type MBK 100, steel C-profile Conveyor belts with chain drive type MBK 100, steel C-profile Conveyor belts with chain drive type MBK 100, steel C-profile Conveyor belts with chain drive type MBK 100, steel C-profile

Conveyor belts with chain drive type MBK 100, steel C-profile

In stock

Item number
UNSPSC
24101712

Length (mm)

Belt width (mm)

Drum diameter (mm)
100

Load-bearing capacity (kg)
50 kg/m
Grouped product items
Product Name Qty

→ Discover individual solutions with this product



We deliver stock items within
24 hours free of charge*!

*Within Austria from € 250,-

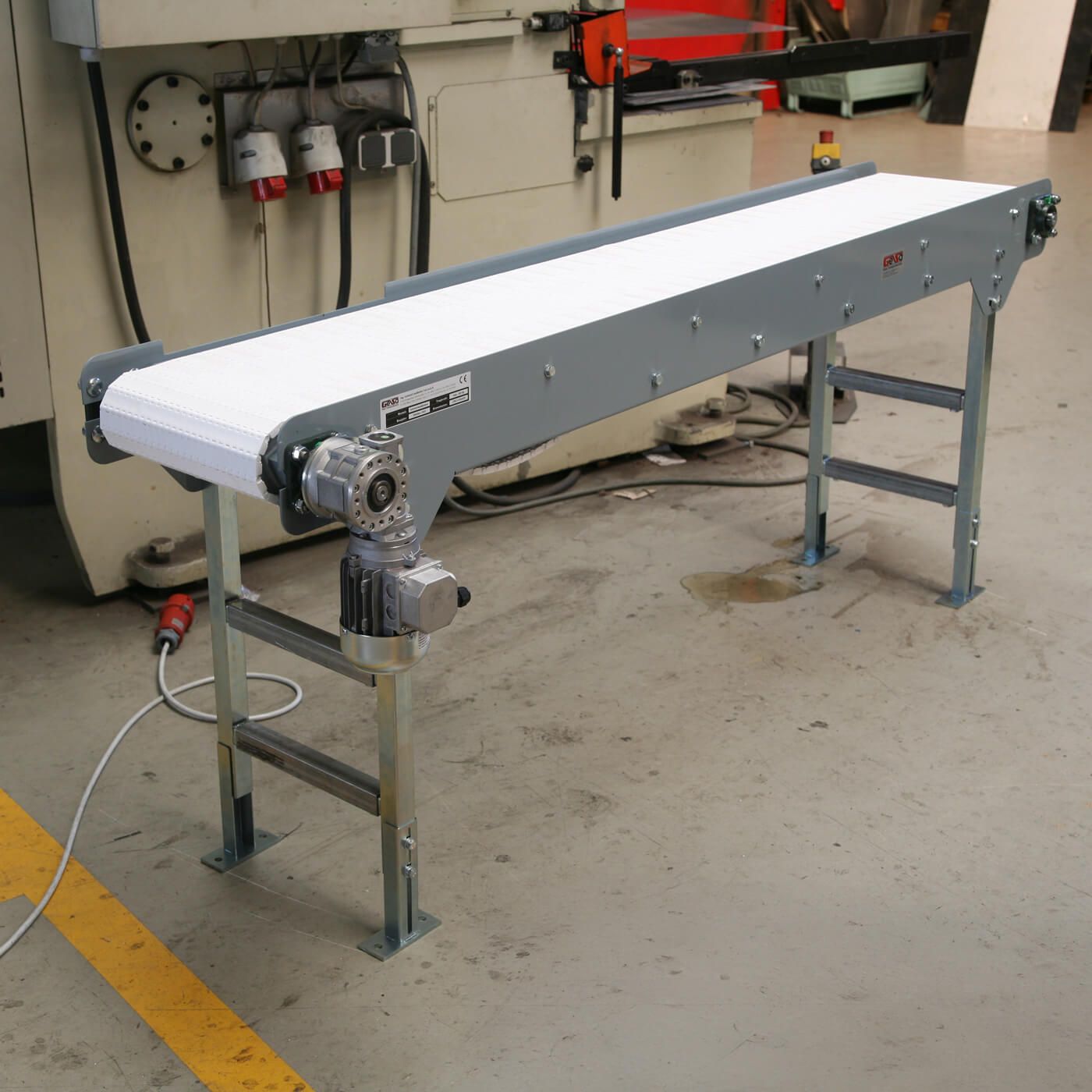

flat conveyor belts made of steel. Type MB K with chain drive. Max. 100 kg/m.

Conveyor belts are suitable for horizontal, rising or falling unit loads. The drive power and the design of the conveyor belt depend on the weight, size and nature of the material to be conveyed. The load capacity depends on the belt width and support distance. The frame consists of galvanized steel U-profiles 25 x 100 x 25 x 3 mm and is bolted to galvanized transverse spacer tubes. The transport belt is carried on a galvanised sliding plate.

The drive is effected via chain or directly via a slip-on gear by a three-phase gear motor 230/400 V, 50 Hz. As standard, this is mounted on the drive drum on the right or left-hand side of the drive drum on the traction side in the conveying direction. The conveyor belts are selected according to the product and the application.

Scherenhubtisch Sonderanfertigung
Scherenhubtisch Sonderanfertigung
Scherenhubtisch Sonderanfertigung

Flexible and robust

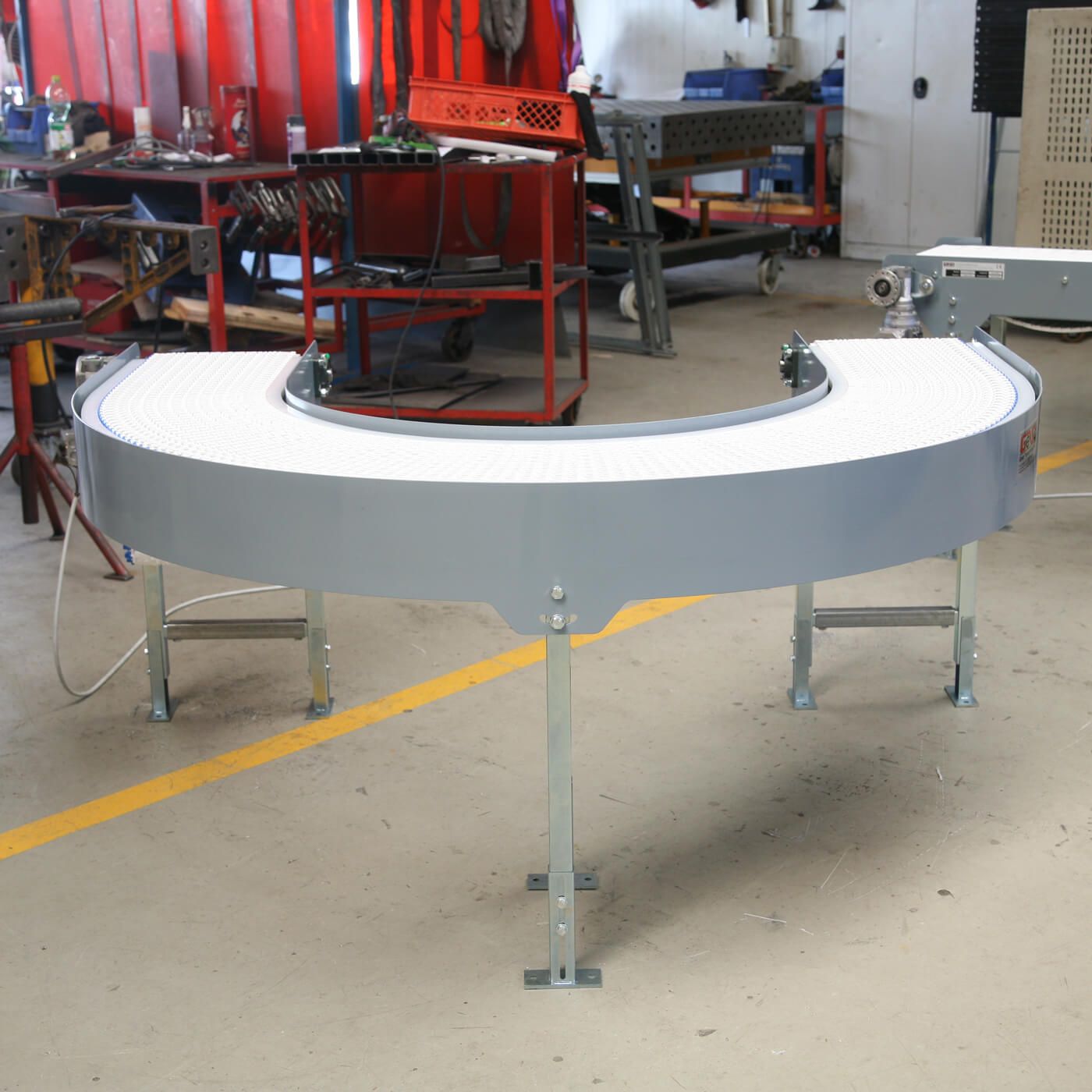

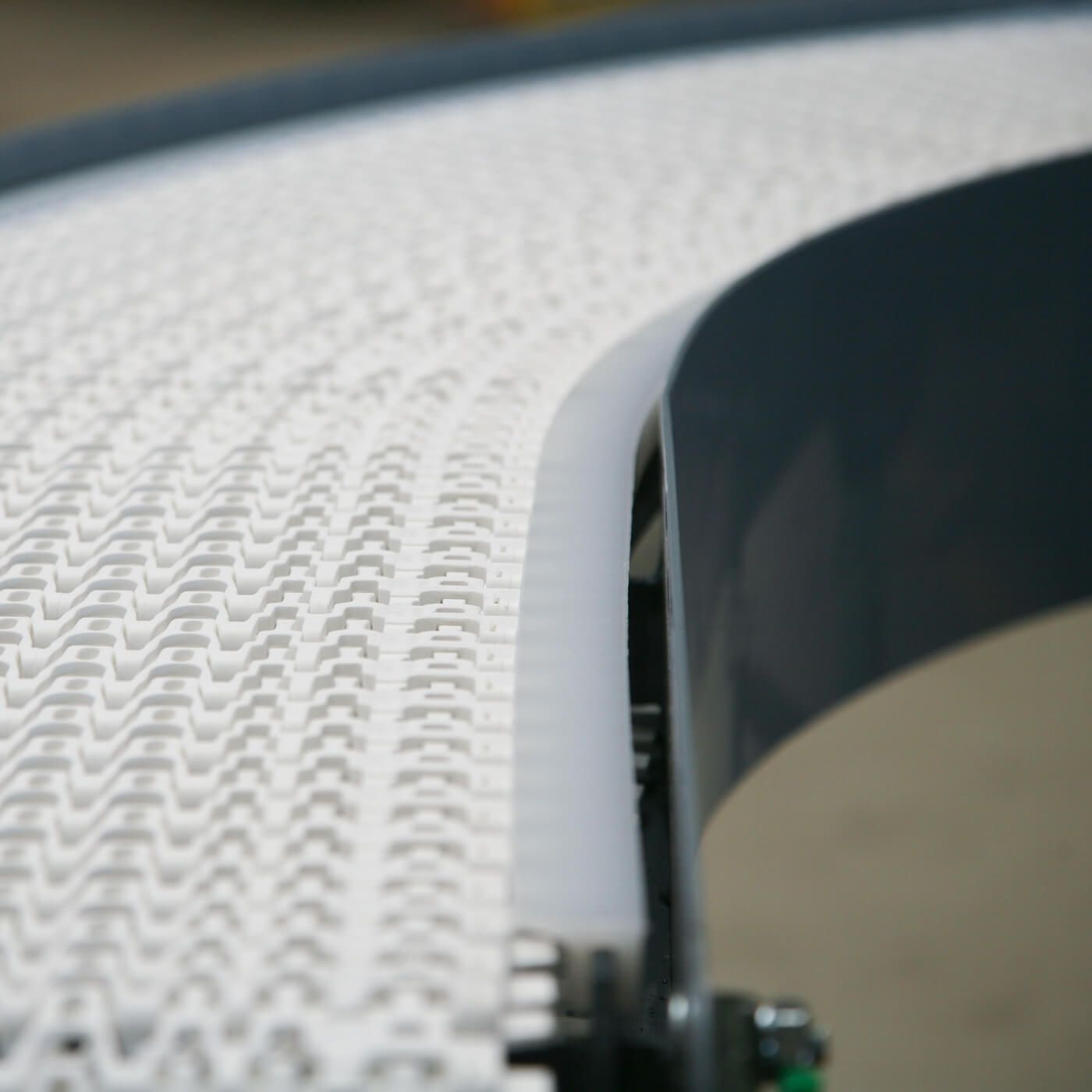

We have developed a tailor-made solution for our customer, consisting of a curved conveyor belt and a straight link conveyor belt. Link belt conveyors offer the advantage of being able to adapt flexibly to a wide variety of materials and shapes. The modular structure allows for easy adjustment of the width and length of the conveyor belt, as well as the integration of additional components such as side guides and drive systems. This makes material transport even more efficient. Thanks to their robustness and longevity, link belt conveyors are ideal for continuous operation in demanding production environments.

Do you need something similar or have any questions?
Feel free to contact us at +43 463 34114-0 or send us an email at [email protected].

We look forward to hearing from you!
