ATP LARI 01/75/24G
€29.36 Regular Price €30.90
exkl. MwSt./Stk.
5% Online-Rabatt
You save 1,54 €
Available immediately
ATP LARI 01/75/24G
Item number
34676
Part description
ATP LARI 01/75/24G
UNSPSC
31162701
Diameter (mm)
75
Wheel width (mm)
24
Construction height (mm)
101
Load-bearing capacity (kg)
60
Arrester
without Arrester
Bearing type
Plain bearing
Wheel material
Thermoplastic rubber/elastomer
Wheel material
Thermoplastic rubber/Elastomer
Jib length (mm)
30,5
Fastening method
Rückenloch
Back hole (mm)
10,2
Plate diameter (mm)
86
ATP LARI 01/75/24G
€29.36 Regular Price €30.90
5% Online-Rabatt
You save 1,54 €
Available immediately
Related Products
Fixed castors, wheel type ATP BARI
Starting at €16.72
Swivel castor, wheel type ATP
Starting at €27.74
Wheels type ATP
Starting at €2.47
€29.36 Regular Price €30.90
exkl. MwSt./Stk.
5% Online-Rabatt
You save 1,54 €
Available immediately
Serie ATP
Starting resistance
Rolling resistance
Driving noise
Abrasion
Starting resistance
Rolling resistance
Driving noise
Abrasion
We deliver stock items within
24 hours free of charge*!
*Within Austria from € 250,-

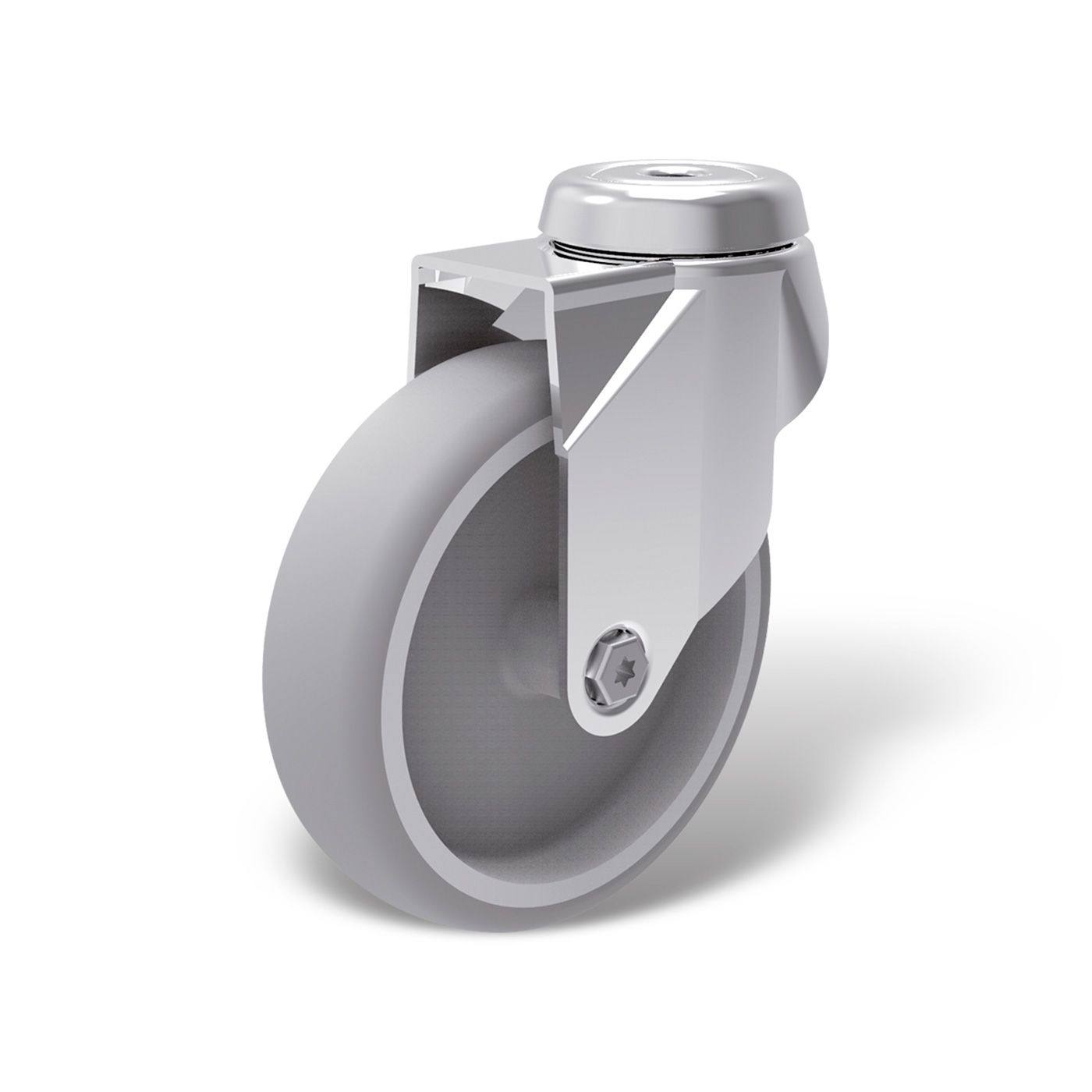

Stainless steel sheet housing made of material 1.4301 (AISI 304) with bolt hole fastening. Fork head with double ball crown. The base plate is firmly riveted to the fork part, we pay attention to minimal play in the fork head and high ease of movement.
Apparatus rollers from the ATP series consist of a light gray polypropylene rim on which a dark gray thermoplastic rubber approx. 82° Shore A is sprayed on. The wheels are available with plain or deep groove ball bearings as standard.
Apparatus rollers from the ATP series consist of a light gray polypropylene rim on which a dark gray thermoplastic rubber approx. 82° Shore A is sprayed on. The wheels are available with plain or deep groove ball bearings as standard.
