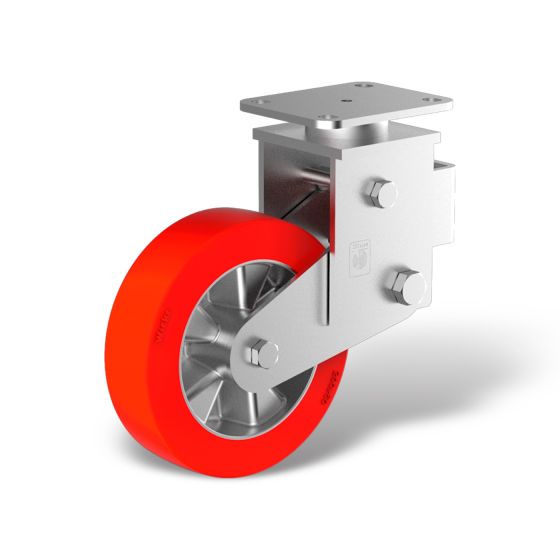

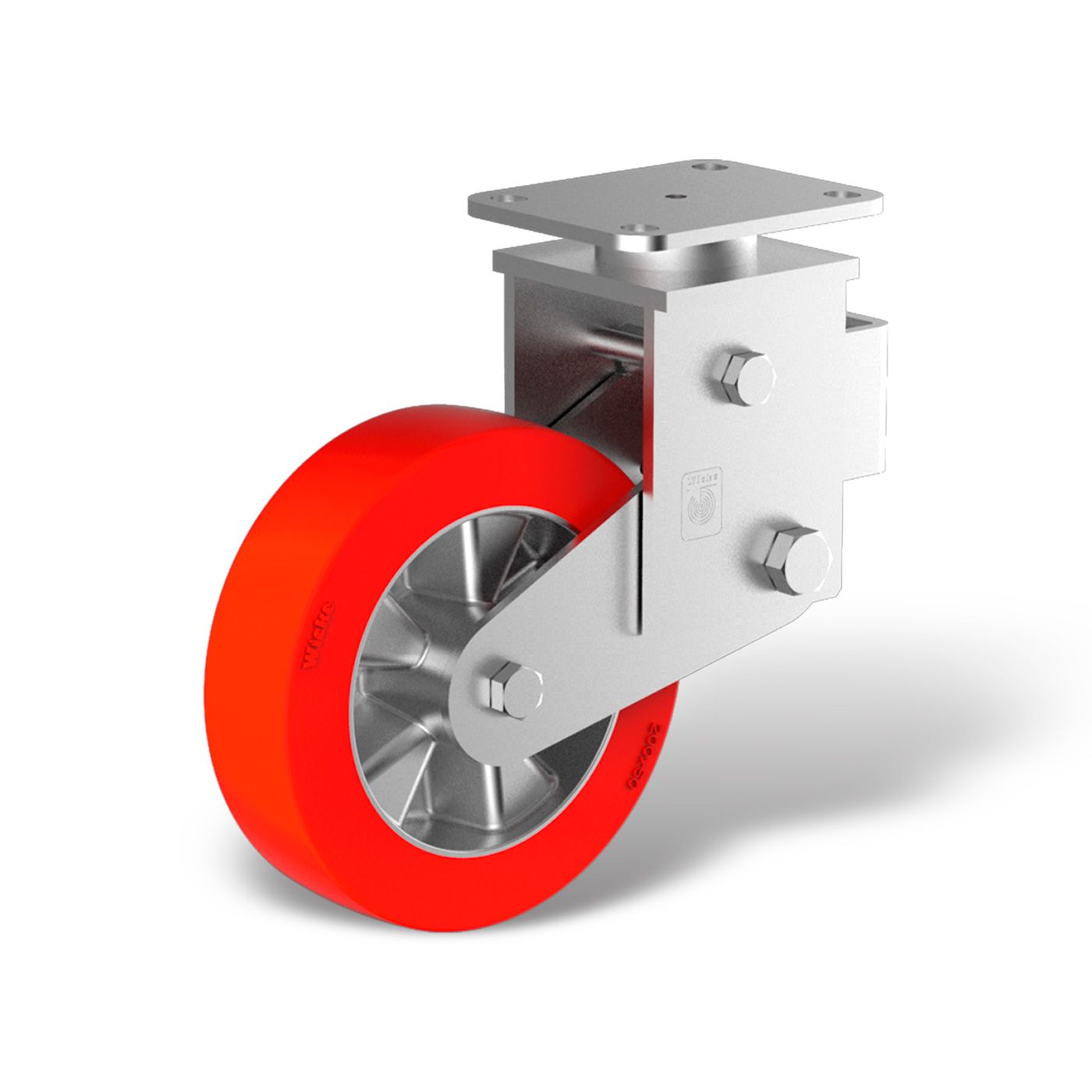

TE BGF 3/02/125/40K
Price On Demand
exkl. MwSt./Stk.
5% Online-Rabatt
You save 0 €

TE BGF 3/02/125/40K
Item number
35067
Part description
TE BGF 3/02/125/40K
UNSPSC
31162701
Diameter (mm)
125
Wheel width (mm)
40
Construction height (mm)
182,5
Load-bearing capacity (kg)
350
Bearing type
Prescision ball bearing
Wheel material
Polyurethane
Wheel material
Polyurethane
Fastening plates external dimensions (LxB) (mm)
100 x 85
Fastening hole diameter (mm)
11
Fastening method
Anschraubplatte
Hole spacing (a x b) (mm)
80x60
TE BGF 3/02/125/40K
Price On Demand
5% Online-Rabatt
You save 0 €

Wheels in the TE series consist of an aluminum rim onto which a soft polyurethane tire, Wicke Redthane® 75° Shore A, is cast. The Redthane® tire, which is bonded to the rim with a special adhesion promoter, is abrasion-resistant, has low rolling and starting resistance, very good traction properties and runs extremely quietly. The tire is cut-resistant with very good values for tear resistance and tear resistance. The wheels are equipped with deep groove ball bearings as standard. Fv: 170; Fe: 3500; Fw: 21; Throat: 46
